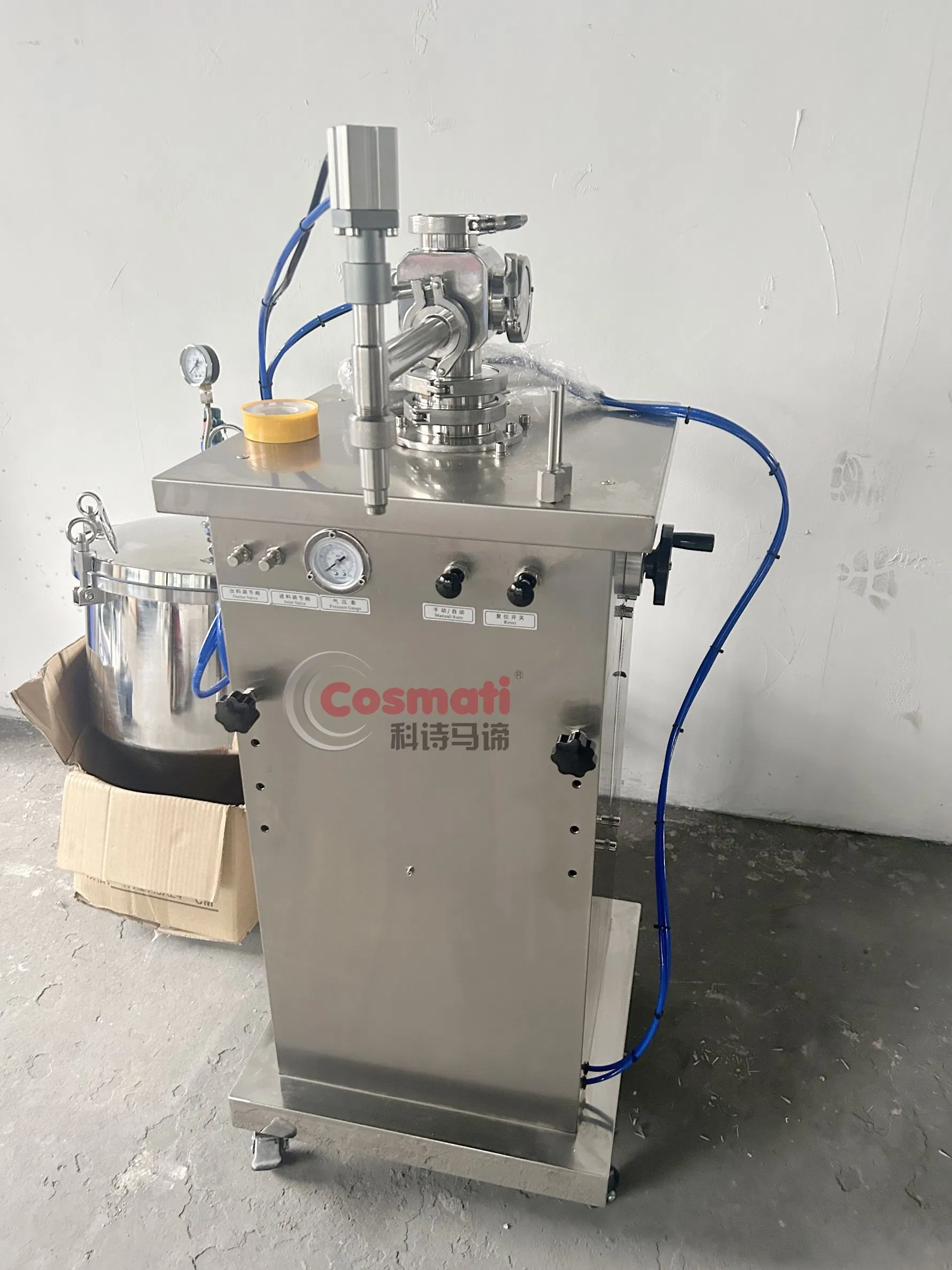

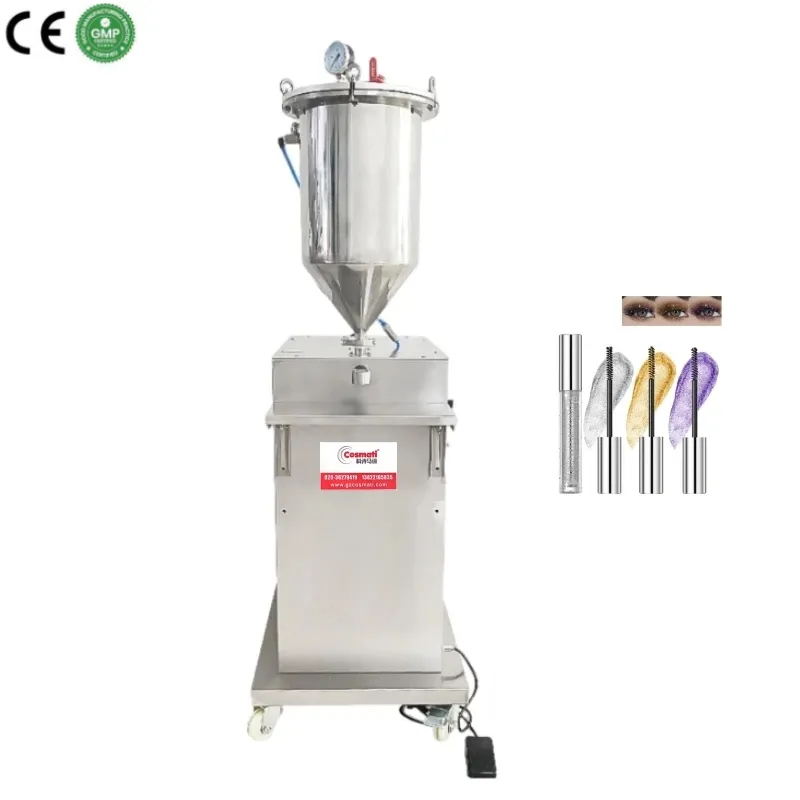

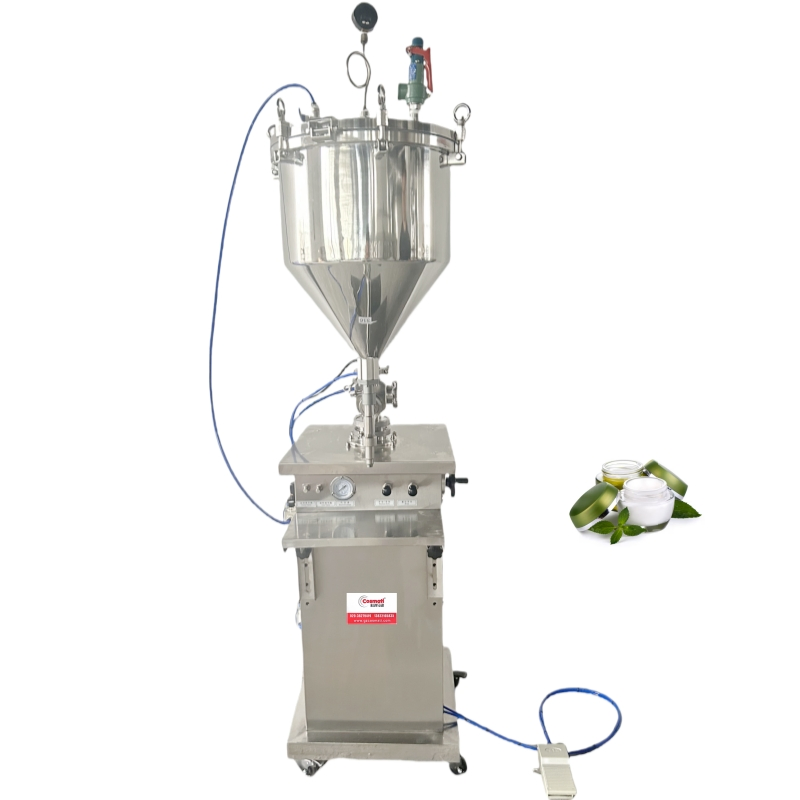

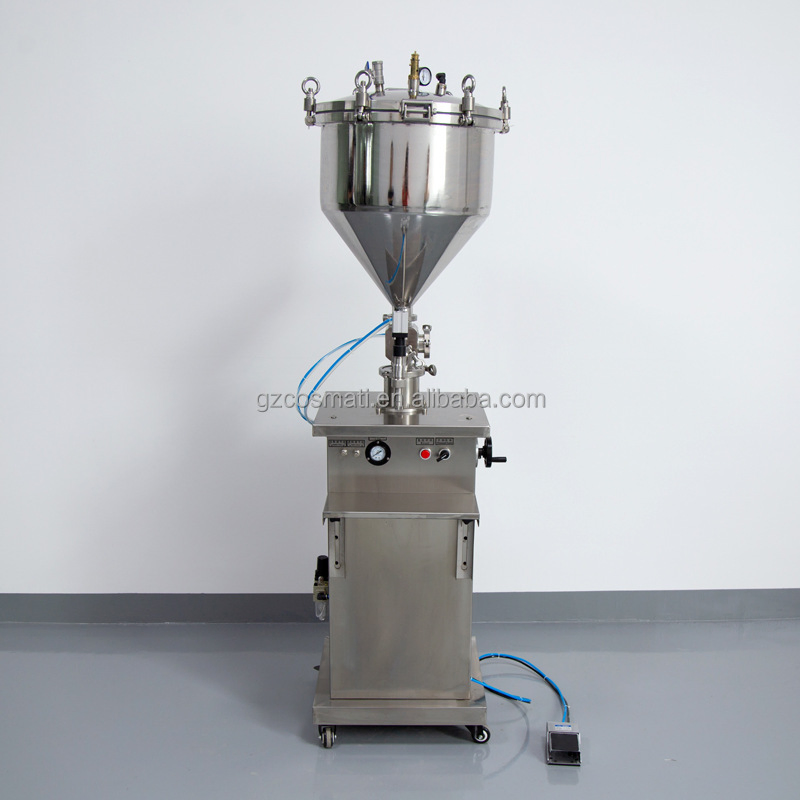

Color Cosmetics Filling Machine Lipgloss Mascara Hydrafacial Pressure Filling Machine
Product Description
📋 Basic Info.
Model NO.
CM-MF-01
Type
Volumetric Filling Machine
Automatic Grade
Semi-Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Structure
Rotary
Packaging
Barrel
Product Name
Semi-Automatic Filling Machine for Mascara
Voltage
AC220V, 1p, 50Hz
Weight
70kg
Application
Mascara, Lipgloss, Nail Polish, etc
Packaging Material
Plastic
✨ Product Description
Color Cosmetics Filling Machine Lipgloss Mascara Hydrafacial Pressure Filling Machine
The mascara filling machine is mainly used for quantitative filling of cosmetic mascara, lip gloss, and liquid foundation (liquid/paste). The quantitative filling method of the piston can accurately set the required volume, and the error value is small, which meets the needs of customers. The machine operation mode is simple and easy to clean. Practical and Effective.
⚙️ Equipment Principles
High Safety: Driven by compressed air, particularly suitable for humid environments with explosion-proof requirements.
Precision Control: Uses start-up control and mechanical positioning; accuracy controlled within five thousandths.
Digital Adjustment: Screw and counter are used to adjust filling volume accurately, reflected in digital form.
Emergency Protection: Emergency stop switch automatically returns the piston to the initial position.
Dual Mode: Switch freely between "manual" and "automatic" filling states.
📊 Specification
| Voltage | 1P/220V/50HZ | Dimension | 410*770*1550mm |
| Hopper | 18L | Power | 100W |
| Capacity | 1200-1800BPH | Weight | 60KGS |
| Filling range | 1-20ml | Installation | 220v power source, air source |
| Filling error | ±0.1ml | Air source | 0.5-0.6MPa |
| Material | 304 stainless steel | Pressure Resistance | 6kg/cm² |

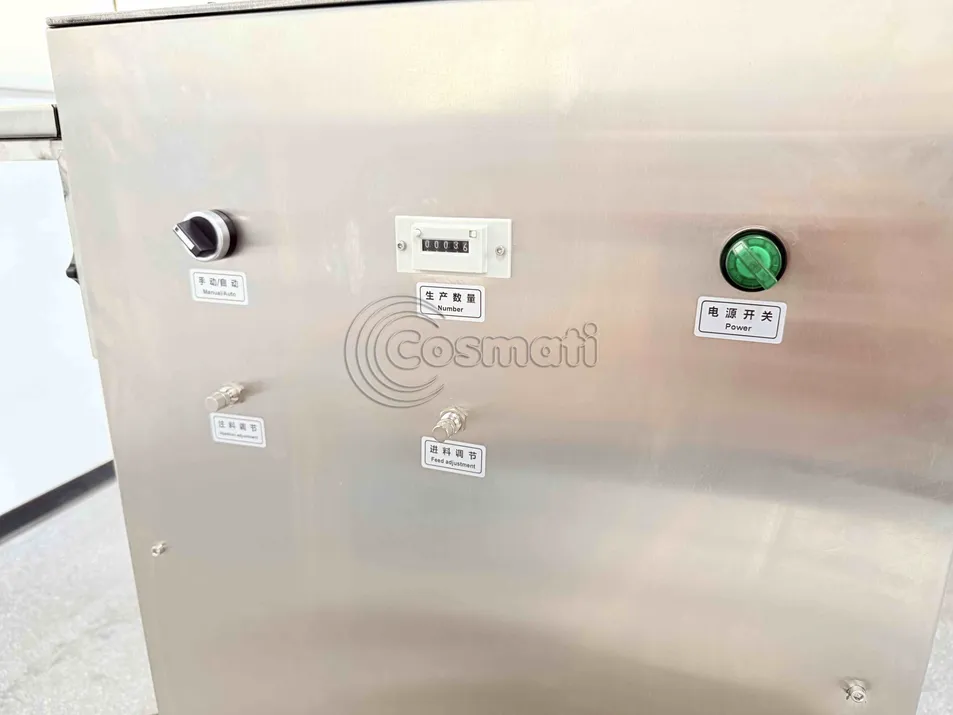

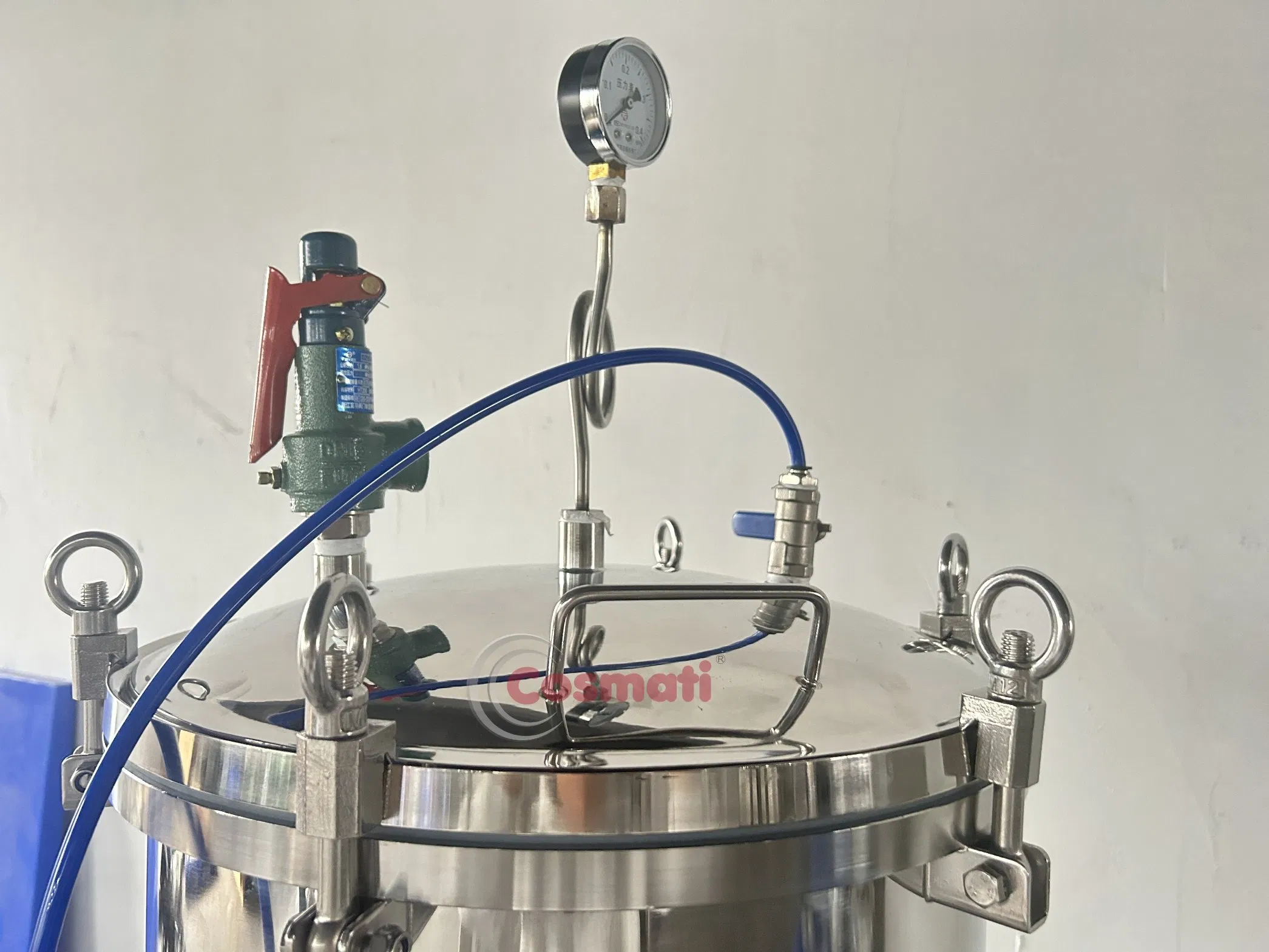

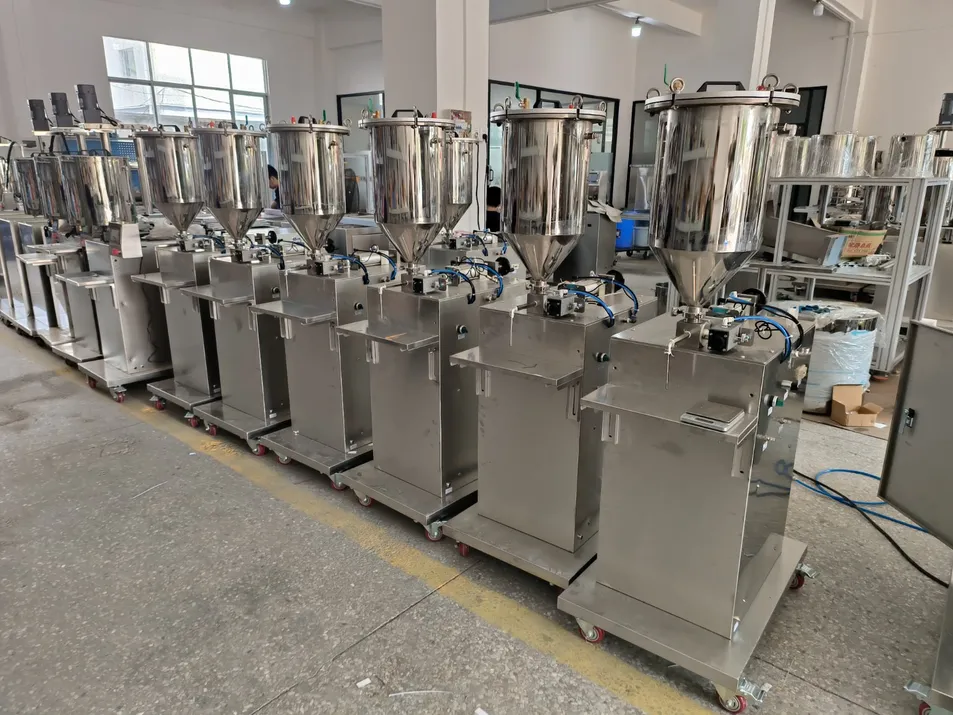

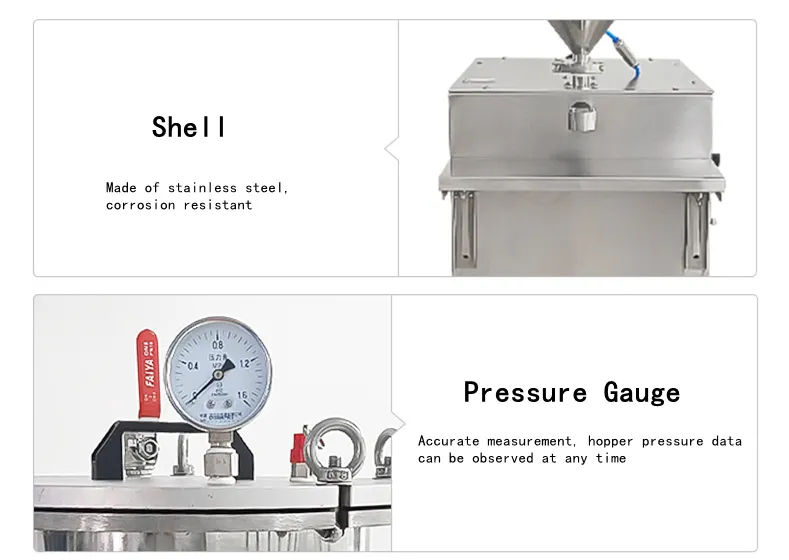

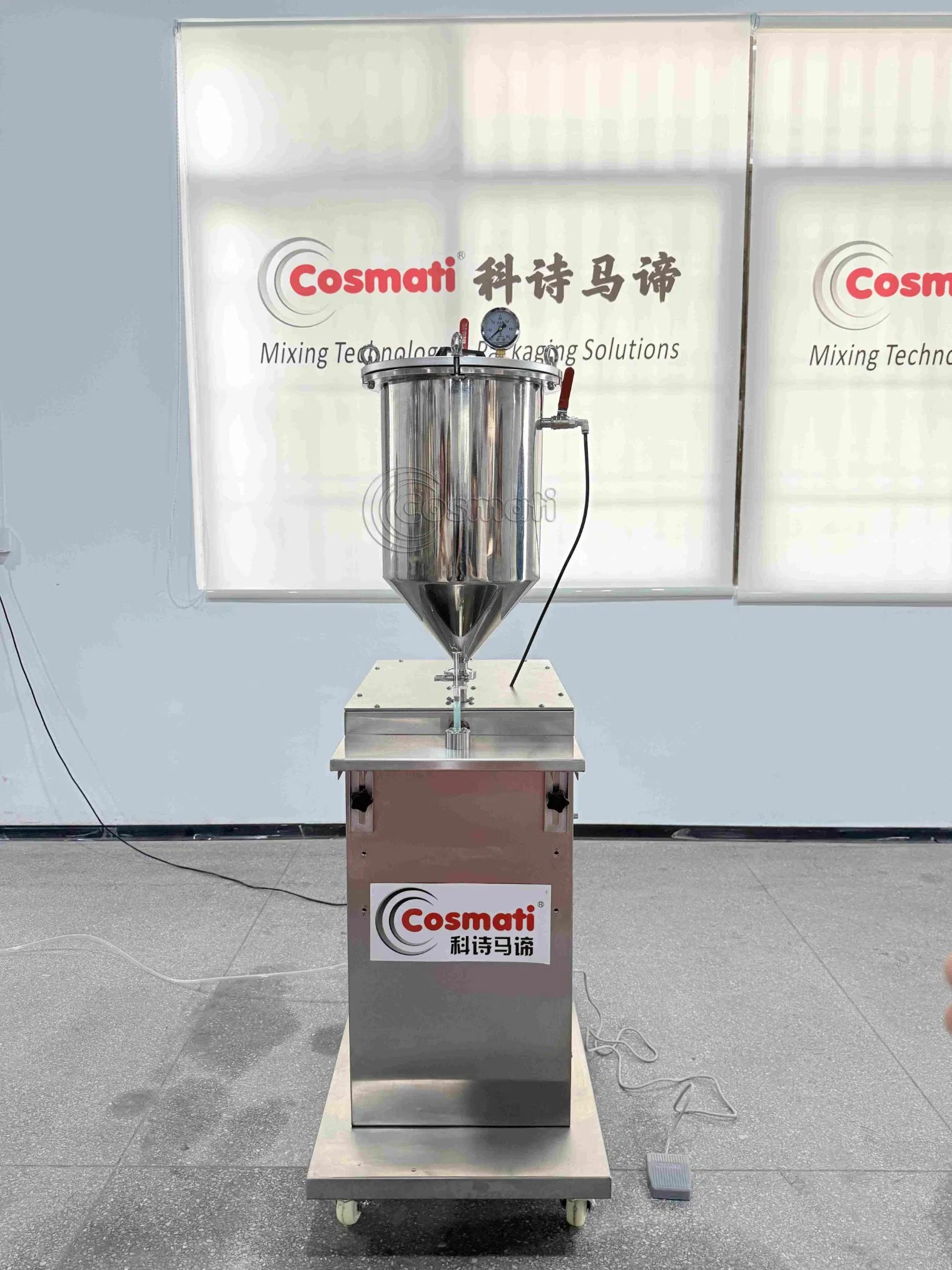

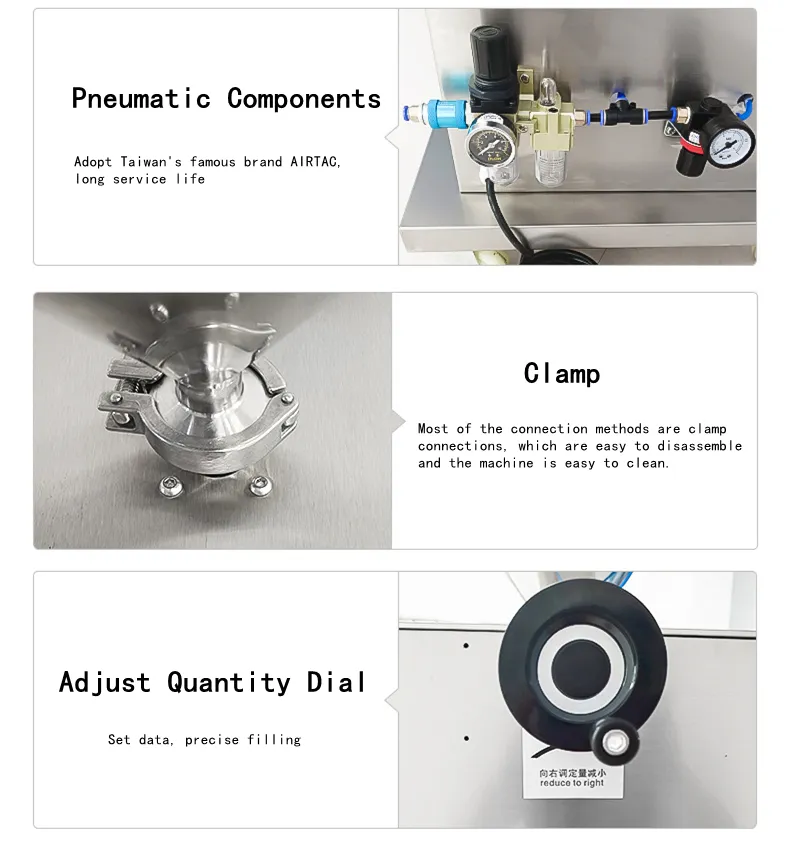

📸 Detailed Pictures
🎯 Applications
Specifically designed for high-precision filling of cosmetic products including Mascara, Lipgloss, and other liquid/paste formulas.
📜 Certifications

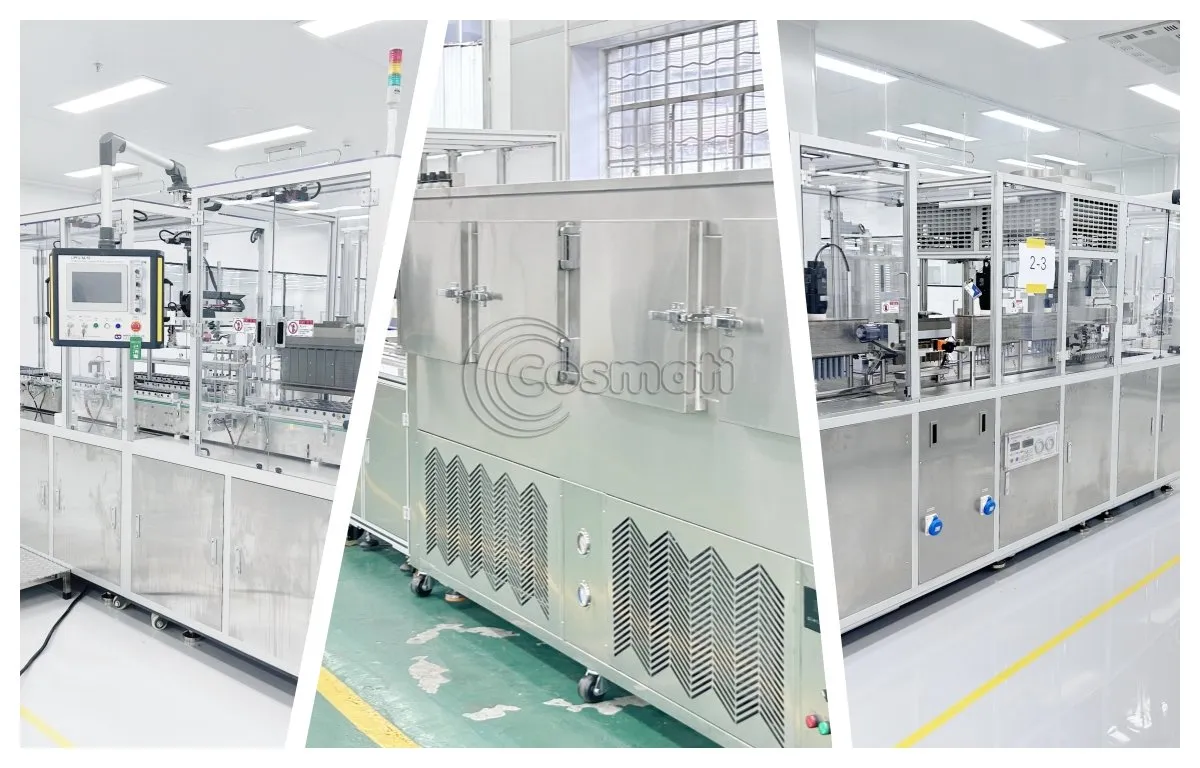

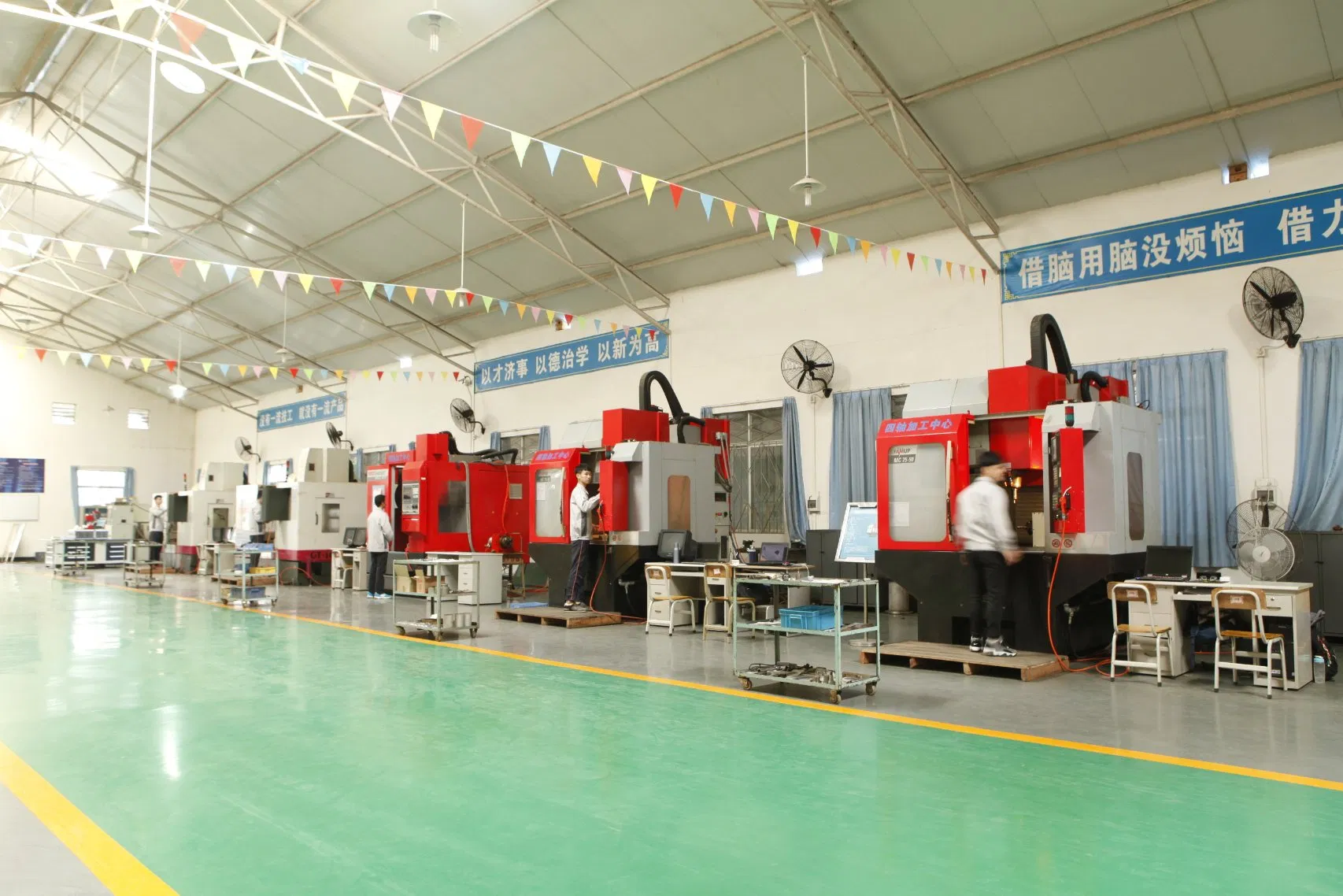

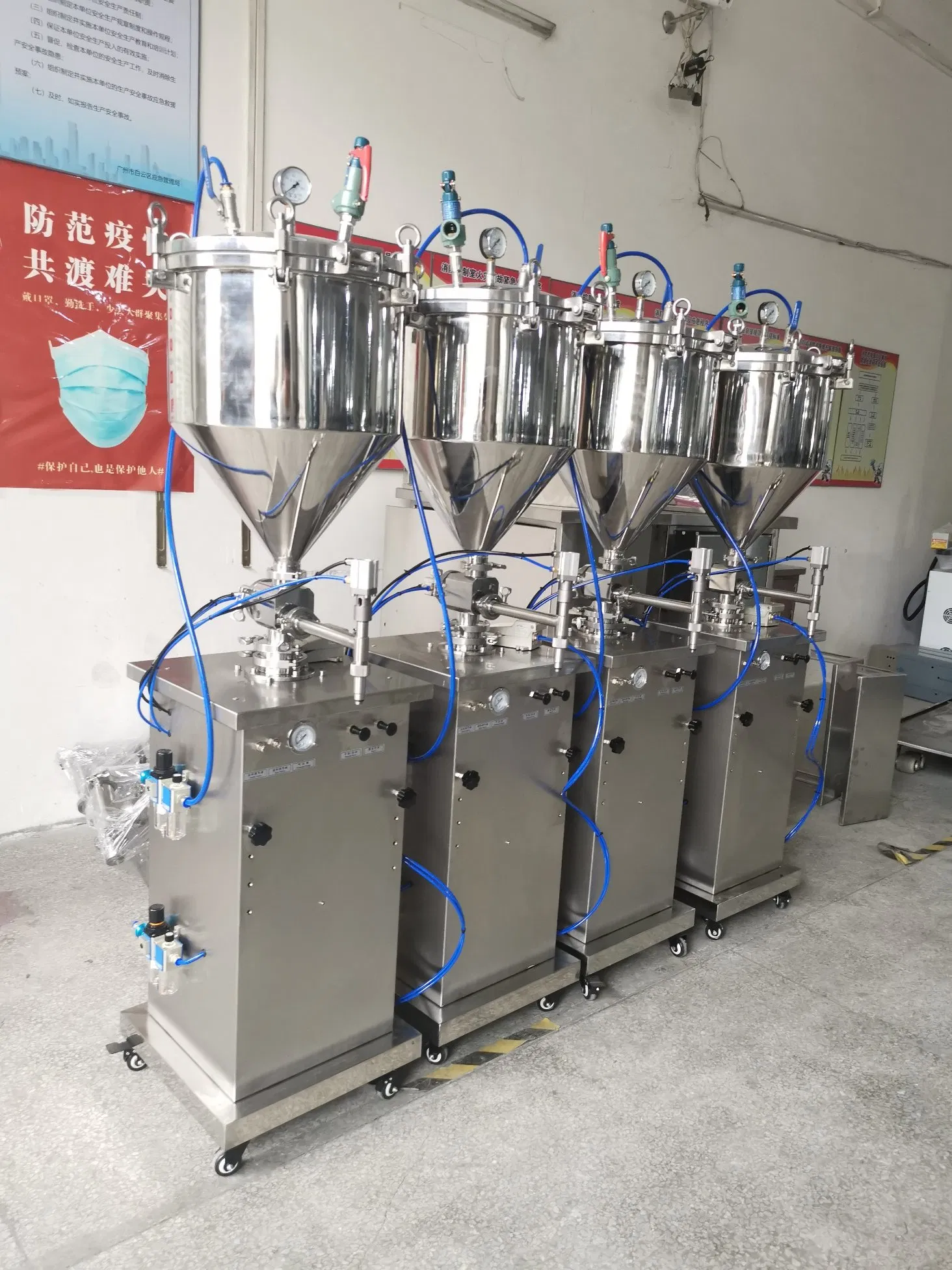

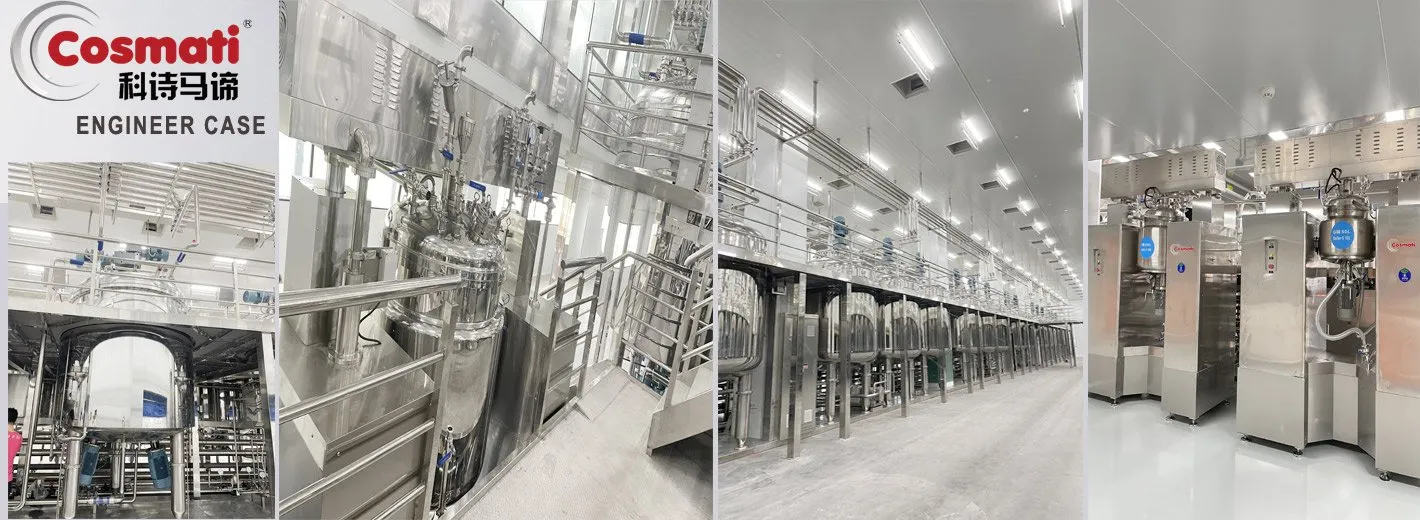

🏭 Production & Facilities
📦 Packaging & Shipping
❓ Frequently Asked Questions
What are the main advantages of this machine?
We have over 17 years of manufacturing experience in color cosmetic fields. This machine features high accuracy (within ±0.1ml), a low failure rate, and a safe pneumatic drive system.
Can this machine be customized?
Yes, as a professional machinery manufacturer for more than 15 years, we possess skilled technical capabilities to customize machines based on specific production needs.
What materials can it handle?
It is designed for quantitative filling of liquid and paste products, such as mascara, lip gloss, and liquid foundation.
How is the after-sale service handled?
We provide comprehensive support including installation, machine testing, and staff training. Basic issues are resolved via video call/email, and for complex problems, technical engineers can be arranged.
Is it suitable for humid or hazardous environments?
Yes, since the machine is driven by compressed air, it is particularly suitable for humid environments and meets explosion-proof safety requirements.
How is the filling volume adjusted?
The filling volume is adjusted using a high-precision screw and counter system, which allows for accurate digital reflection and easy operation.
