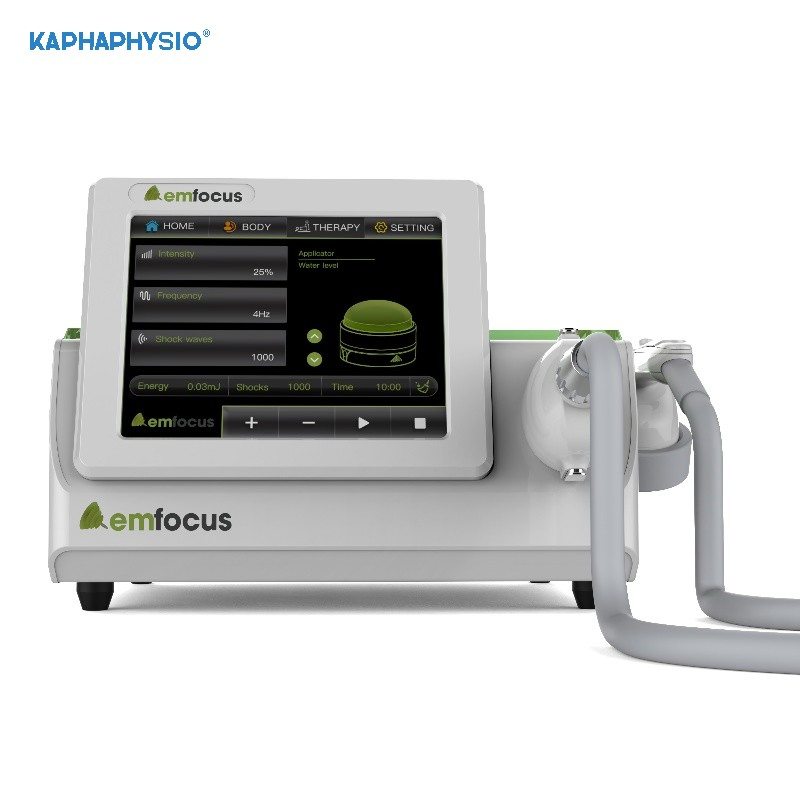

Kaphaphysio Fswt Pain Management Eswt Emfocus Focus Shockwave Physiotherapy Rehabilitation Focused Shockwave Therapy Machine
Product Description
Model NO.
EMFOCUS
Theory
Focus Shockwave Therapy
Certification
CE, ISO13485
LCD Display
12.1 Inches Touch Screen
Penetration Depth
0-120mm
Pressure Range
5-50 MPa
Frequency
1-4Hz
Net Weight
22kg
Suitable for Home and Clinic Use
EMFOCUS is our newest shockwave therapy device, using a newer generation technology: Electromagnetic focus shockwave. It can provide deeper tissue with more depth penetration than radial waves, focusing its output on more localized and deeper regions.

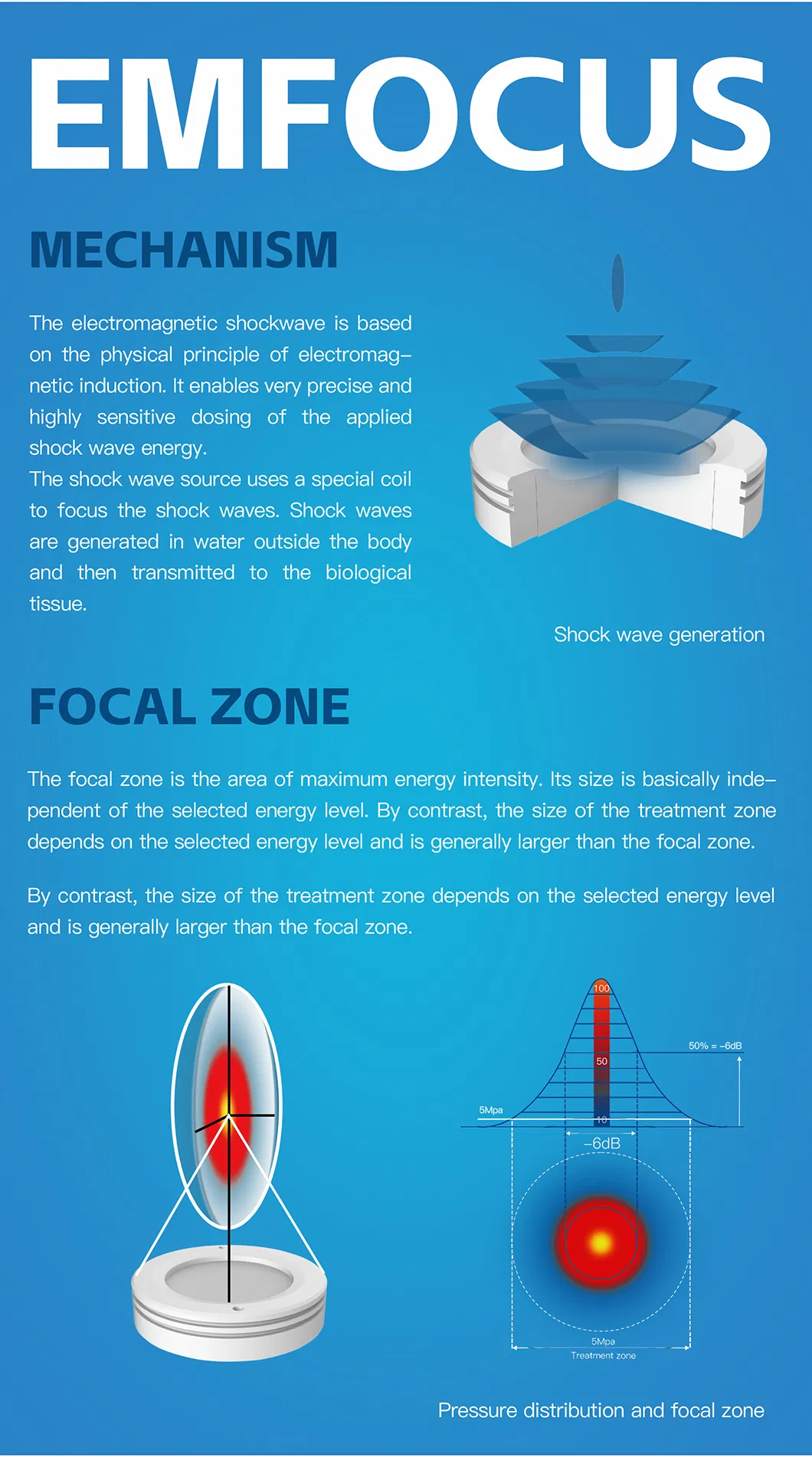

The principle of electromagnetic induction is utilized to generate shock waves. Specifically, a pulsed magnetic field is generated by energizing a high-voltage coil, which pushes a metal diaphragm to vibrate in the water, thereby generating a shockwave that is then propagated to biological tissue.
- ✓Electromagnetically generated beams typically have a large treatment area (propagation characteristics).
- ✓Greater room for error during operation, allowing coverage of the target area even if aiming is not completely precise.
- ✓Increased treatment accuracy and treatment efficiency.
- ✓Wide range of energy settings with a pulse rate of up to 4 Hz.
- ✓User-friendly software with treatment protocols and preset parameters.
- ✓Auto water circulation to control shockwave penetration depth.
Effective for: Chronic back pain, Calcific tendinitis, Degenerative joint ankle, Jumper's knee, Plantar fasciitis, Wrist tendonitis, Hip pain, Heel spur, Erectile dysfunction, and more.

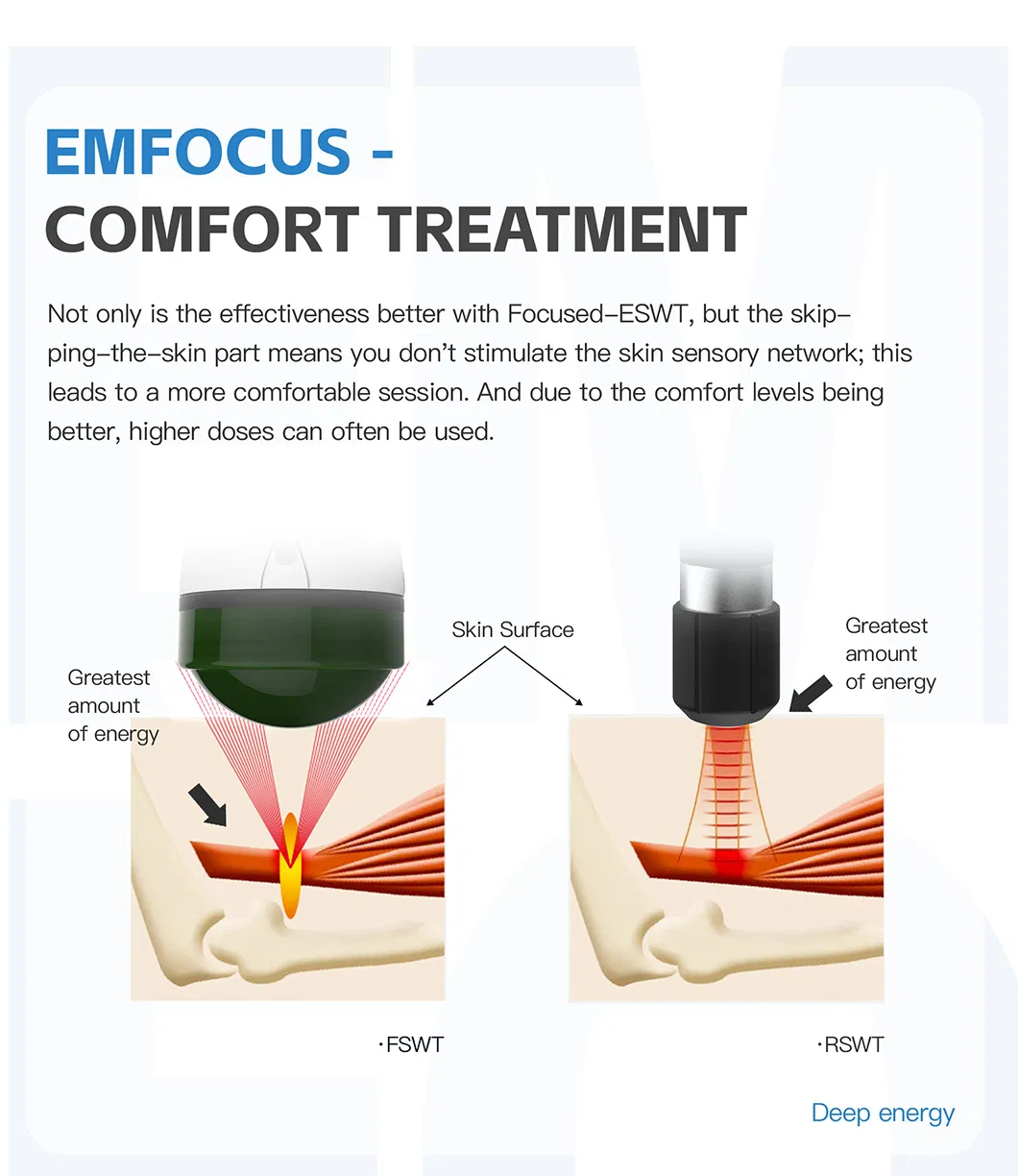

Not only is Focused-ESWT more effective, but skipping the skin means you won't stimulate the skin sensory network, which makes the treatment more comfortable. In addition, electromagnetic focused shock waves have a relatively even energy distribution, minimizing local overheating.
Simple Maintenance: The only required maintenance for the EMFOCUS is to change the water every month.
| Power voltage | ≤400 w |
| Penetration depth | 0-65 mm (Adjustable) |
| Frequency | 1-4 Hz |

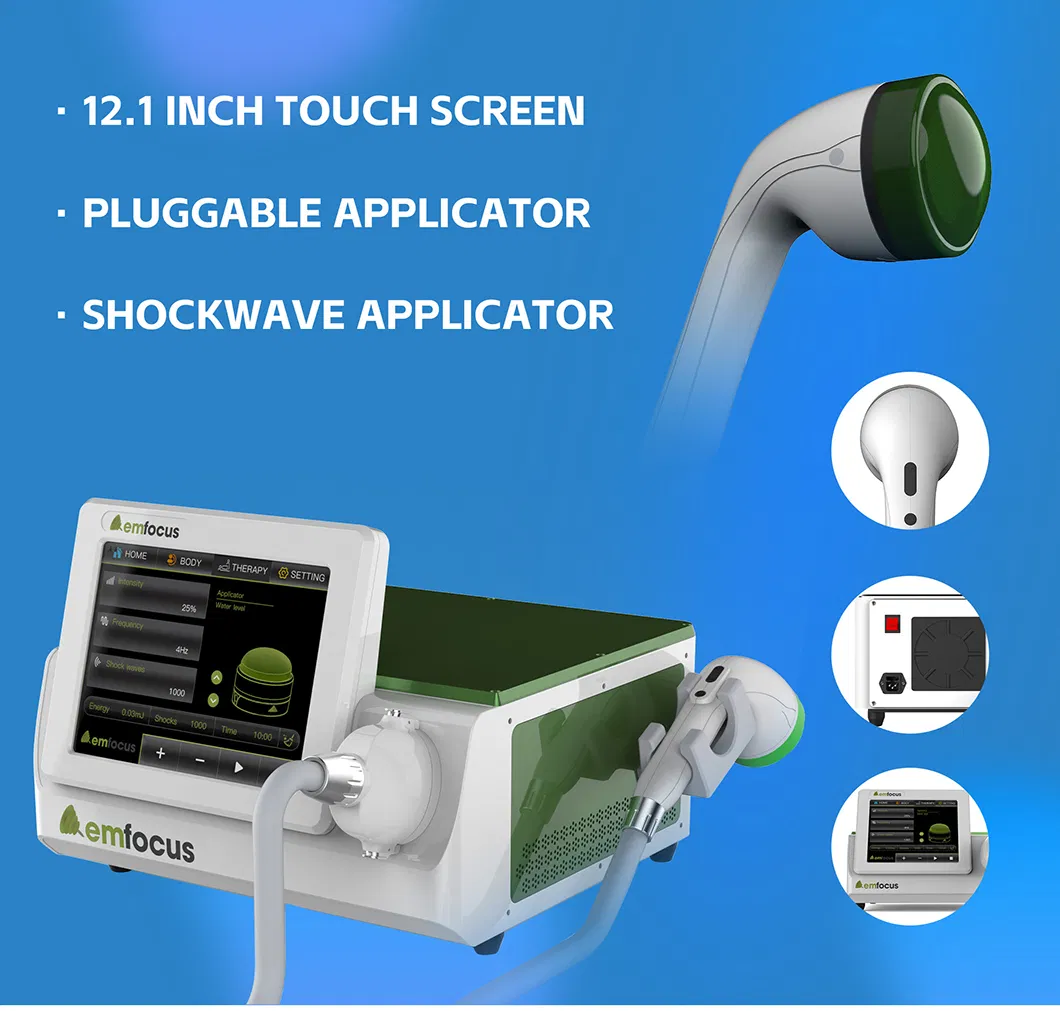

| Screen size | 12.1 inches |
| Applicator | 1 pcs |
| Pressure range | 5-50 Mpa |
| Voltage | 100-110V or 220-240V |
| Dimension & Weight | 47*37*23 cm, 22Kg |

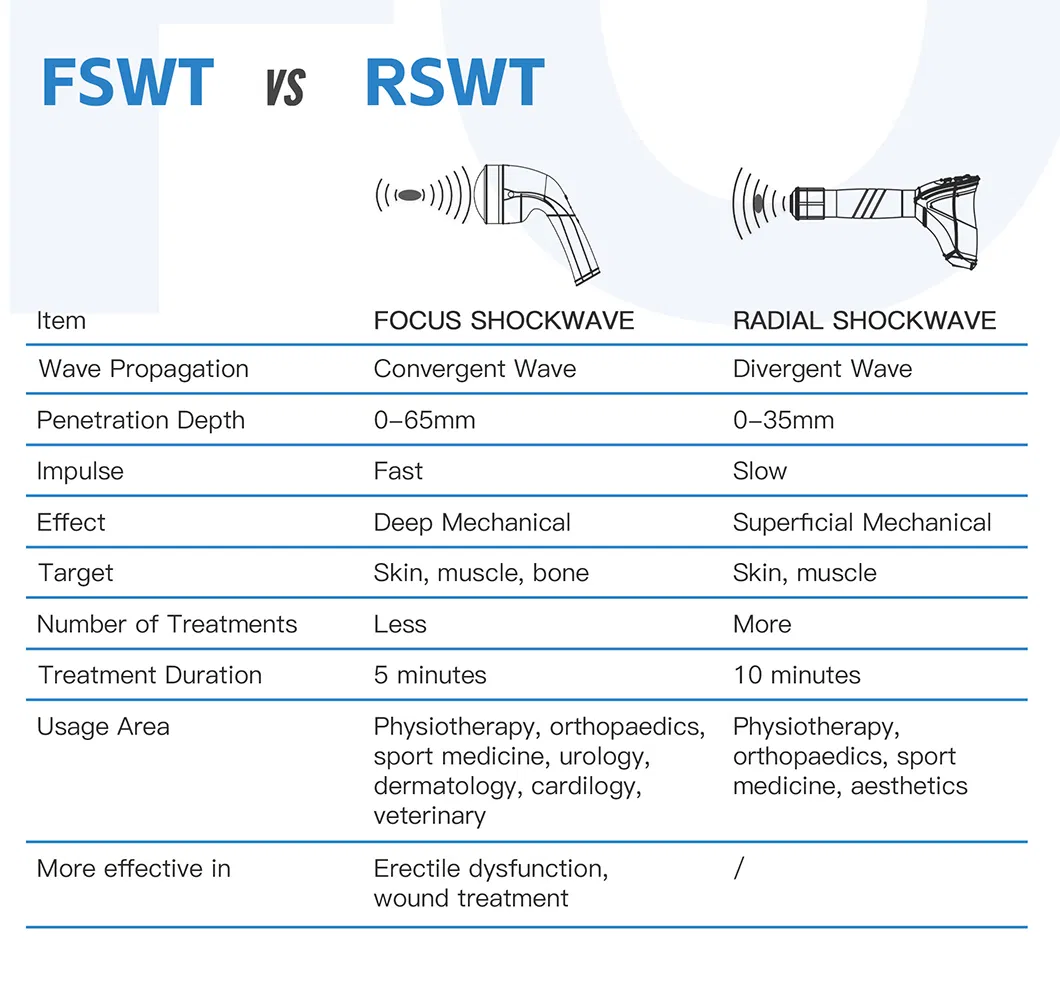

What is the difference between focused and radial shockwaves?
Focused shockwaves (like EMFOCUS) penetrate deeper into the tissue and target localized areas more precisely compared to radial waves, which disperse energy more superficially.
Is the EMFOCUS treatment painful?
Focused-ESWT is generally more comfortable because the energy "skips" the skin's sensory network, reducing surface irritation while delivering effective energy to the deeper target area.
What kind of maintenance does the device require?
The device is designed for easy maintenance. The primary requirement is to change the internal circulation water once every month to ensure optimal performance.

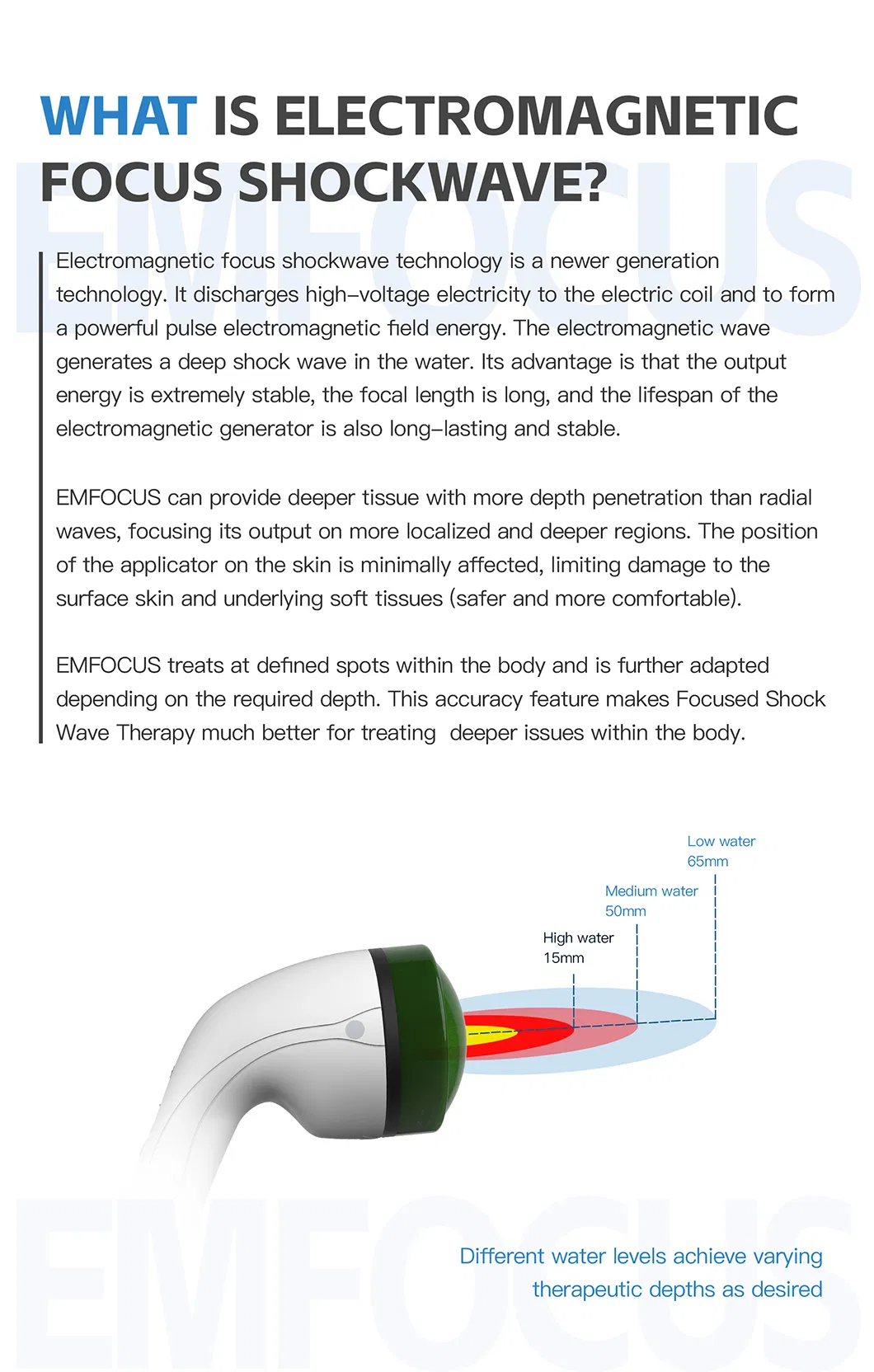

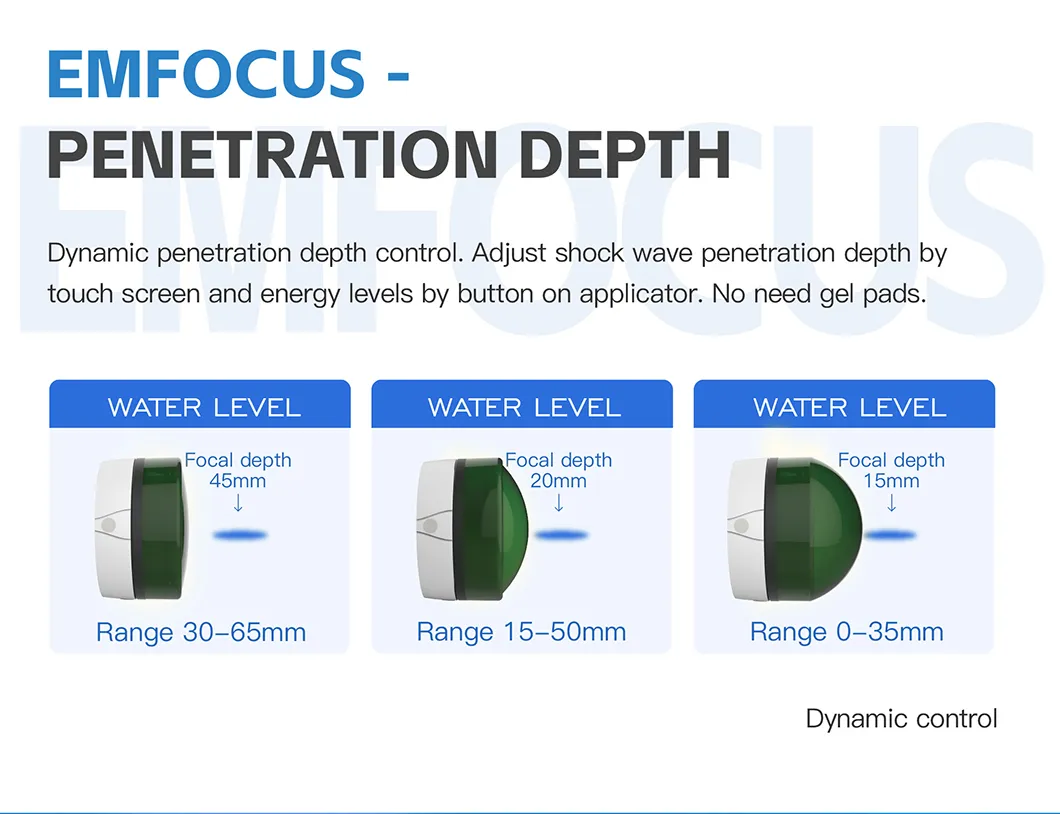

Can I adjust the penetration depth?
Yes, the device features an auto water circulation system. By adjusting the handle bladder water level, you can precisely control the shockwave penetration depth from 0 to 120mm.
Does the software include guided protocols?
Yes, the EMFOCUS comes with a 12.1-inch touch screen featuring user-friendly software that includes preset treatment protocols and parameters for various conditions.
What conditions is this device suitable for?
It is highly effective for chronic pain management, including plantar fasciitis, Achilles tendonitis, jumper's knee, calcific tendinitis, and even erectile dysfunction (ED) treatments.
