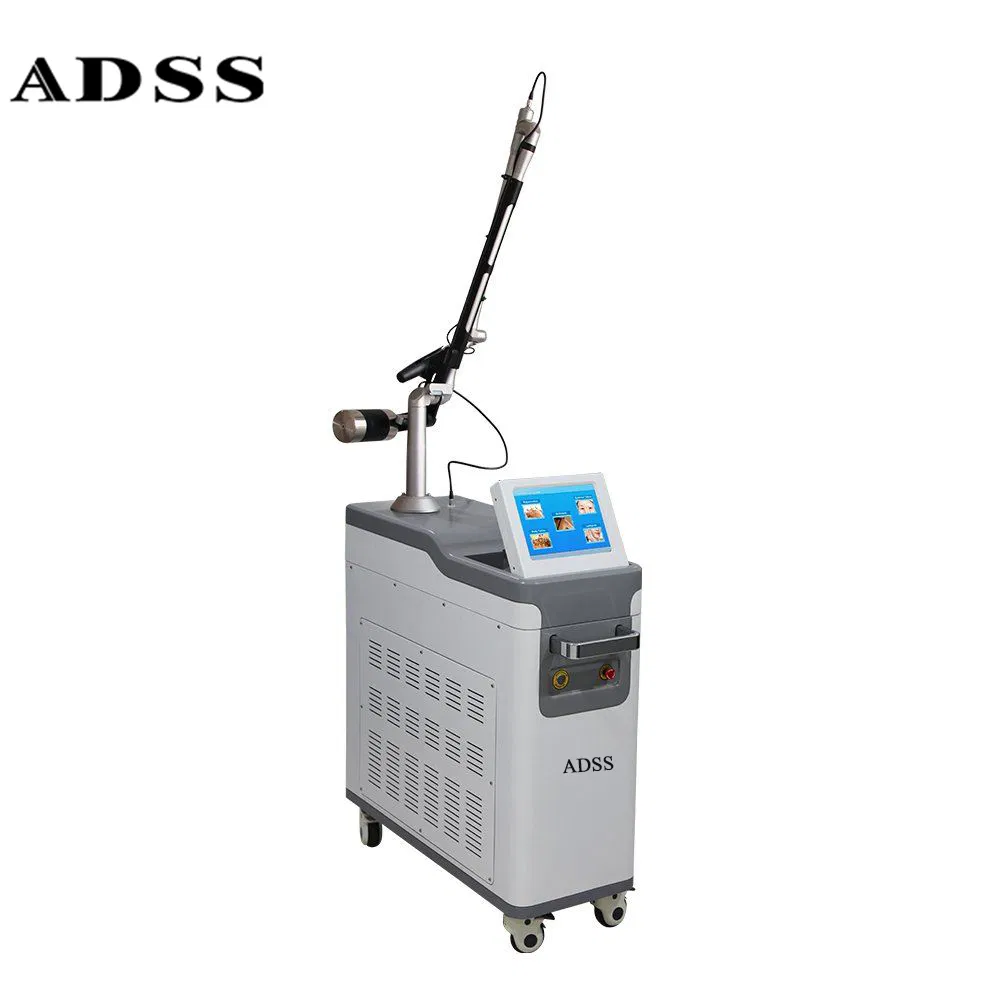

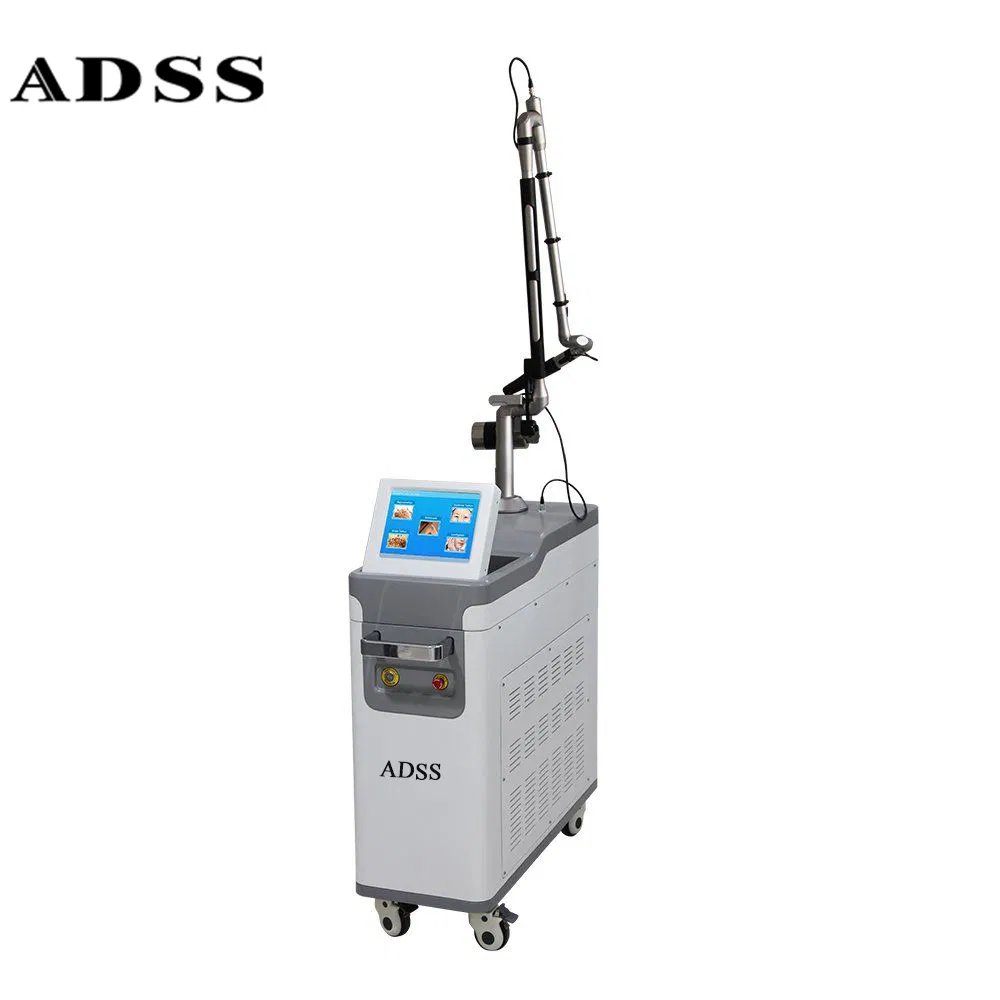

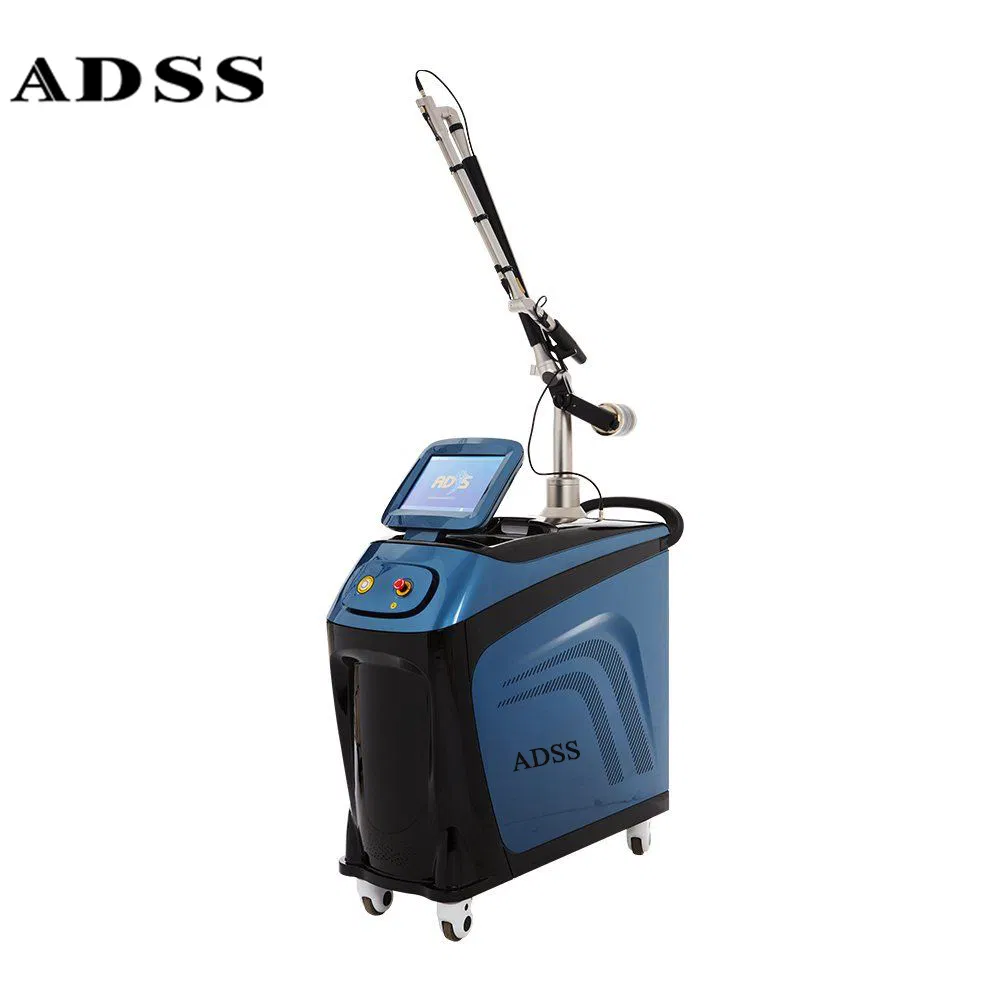

Fg2014 ND YAG Laser Tattoo Removal Machine
Product Description
i
Basic Information
Model NO.
FG2014
Application
Salon, Home
Portable
Non Portable
Laser Type
ND YAG Laser
Feature
Tattoo Removal Machine
OEM&ODM
Yes
Package
Aluminum Alloy Case
Specification
CE
HS Code
85437099
Capacity
1000sets/Month
★
Product Overview
Quasi-Long Mode
Quasi-Long Pulse (pulse width 300us @ 1064nm) is a combination of toning and lifting which enables pigmented cells to absorb the laser selectively. It stimulates collagen by the destruction of pigmented cells, and it is useful for general skin regenerating after peeling, improving loose skin, and minimizing large pores.
DUAL-Q Mode
DUAL-Q mode delivers 2 pulses of constant energy laser power in a very short period of time. Compared to previous laser toning procedures, its energy is much higher. High energy is divided into two to increase the effect while reducing side effects such as hypopigmentation or melasma recurrence. Available at both 1064nm and 532nm wavelengths.
Auto-Calibration System
Reliable treatment is guaranteed despite long hours of use, as the auto-calibration system provides consistent and stable energy output.
⚙

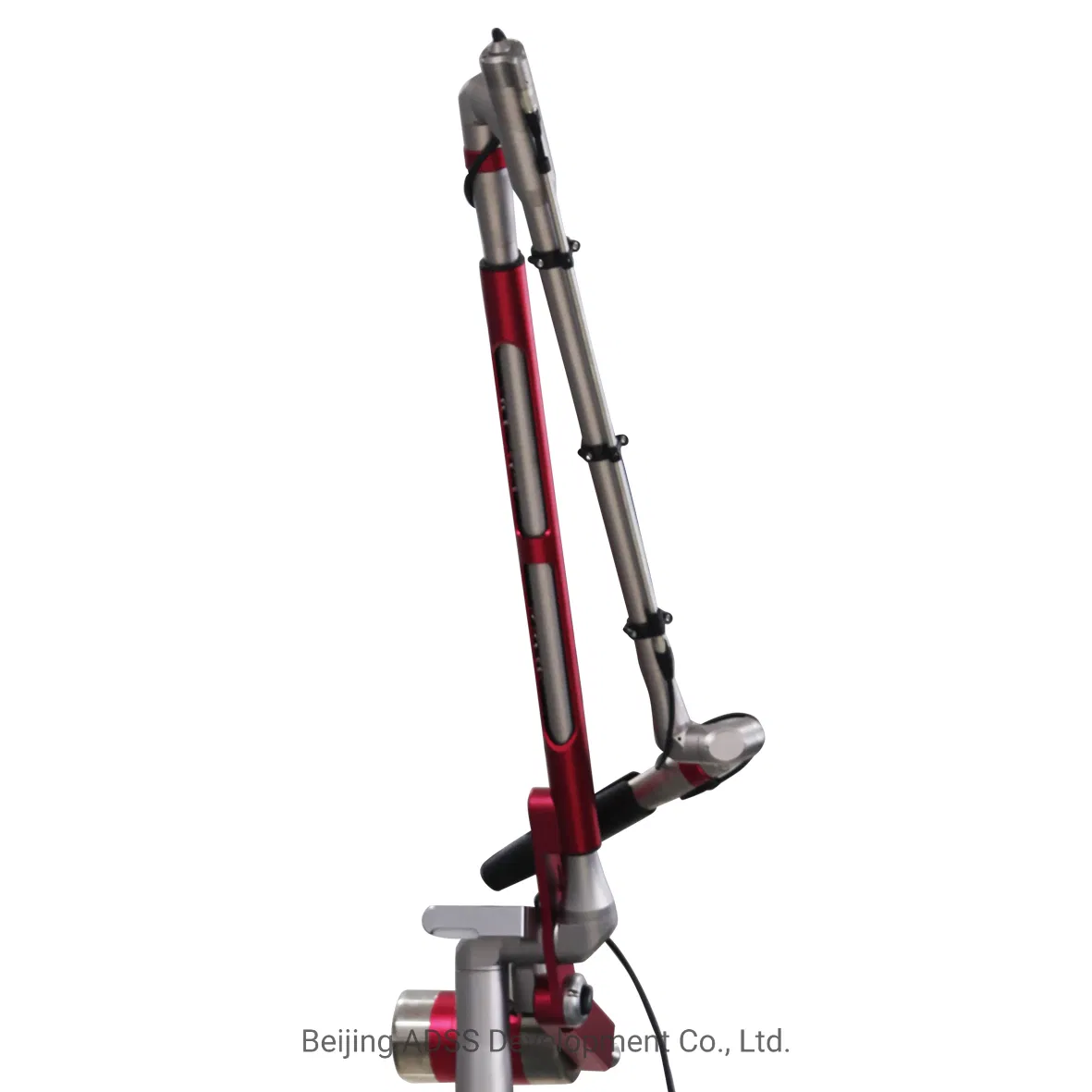

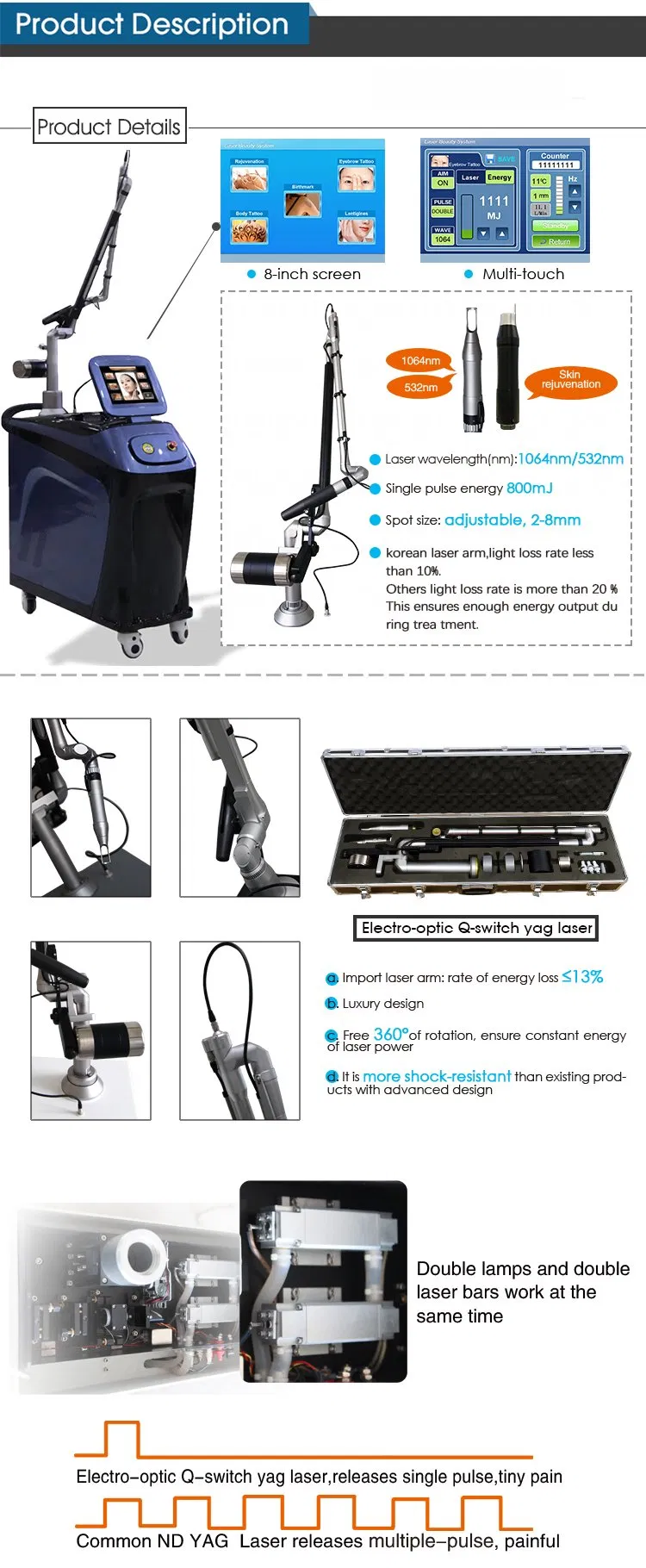

Professional Laser Arm
- Imported Laser Arm: Energy loss rate ≤ 13%
- Luxury Design: High-end aesthetic and ergonomic build
- 360° Rotation: Ensures constant energy and flexibility during procedures
- Shock-Resistant: Advanced design for durability and stability
✔
Key Applications
Pigmentation Removal: Freckles, speckles, blemishes, café au lait spots, Becker's nevus, tattoo removal, melasma, and hyperpigmentation.
Skin Rejuvenation: Pores shrinking and overall skin texture improvement.
📋
Technical Specifications
| Laser Wavelength | 1064nm / 532nm |
| Aiming Light | 650nm (Red Color) |
| Output Energy (Single Pulse) | 1064nm: 100-1000mJ; 532nm: 50-650mJ |
| Output Energy (Double Pulse) | 1064nm: 200-2600mJ; 532nm: 100-1300mJ |
| Laser Mode | Single / Double Pulse |
| Repetition Rate | 1 Hz - 10 Hz |
| Pulse Width | 5-8ns (Q-Switched); 300us (Quasi-Long) |
| Spot Diameter | 2mm - 10mm Adjustable |
| Power Supply | 1500W / 10A |
| Water Tank Capacity | 8L |
| Optical Arm | 7-Articular Optical Arm |
| Machine Dimension | 83 x 33 x 92 cm |
?
Frequently Asked Questions
What are the primary uses for the FG2014 ND YAG Laser?
The FG2014 is primarily used for professional tattoo removal, treatment of various pigmentations like freckles and melasma, and skin rejuvenation treatments such as pore shrinking.
How does the DUAL-Q mode benefit the patient?
DUAL-Q mode delivers high energy divided into two rapid pulses. This method maximizes the treatment effect on pigments while significantly reducing side effects like hypopigmentation or skin damage.
Is the energy output stable during long treatment sessions?
Yes, the machine features an integrated Auto-Calibration System that ensures consistent and stable energy output even during extended hours of operation.
What is the advantage of the 7-articular optical arm?
The imported 7-articular arm provides 360° of rotation and has a very low energy loss rate (≤ 13%), ensuring that the laser power remains constant and the operator has maximum flexibility.
Can this machine treat large skin areas?
Yes, the spot diameter is adjustable from 2mm to 10mm, allowing for precise treatment of small spots or faster coverage of larger pigmented areas.
What is the Quasi-Long mode used for?
Quasi-Long mode (300us pulse width) is designed for skin toning and lifting. It stimulates collagen production, making it excellent for improving skin elasticity and minimizing pores after peeling.
