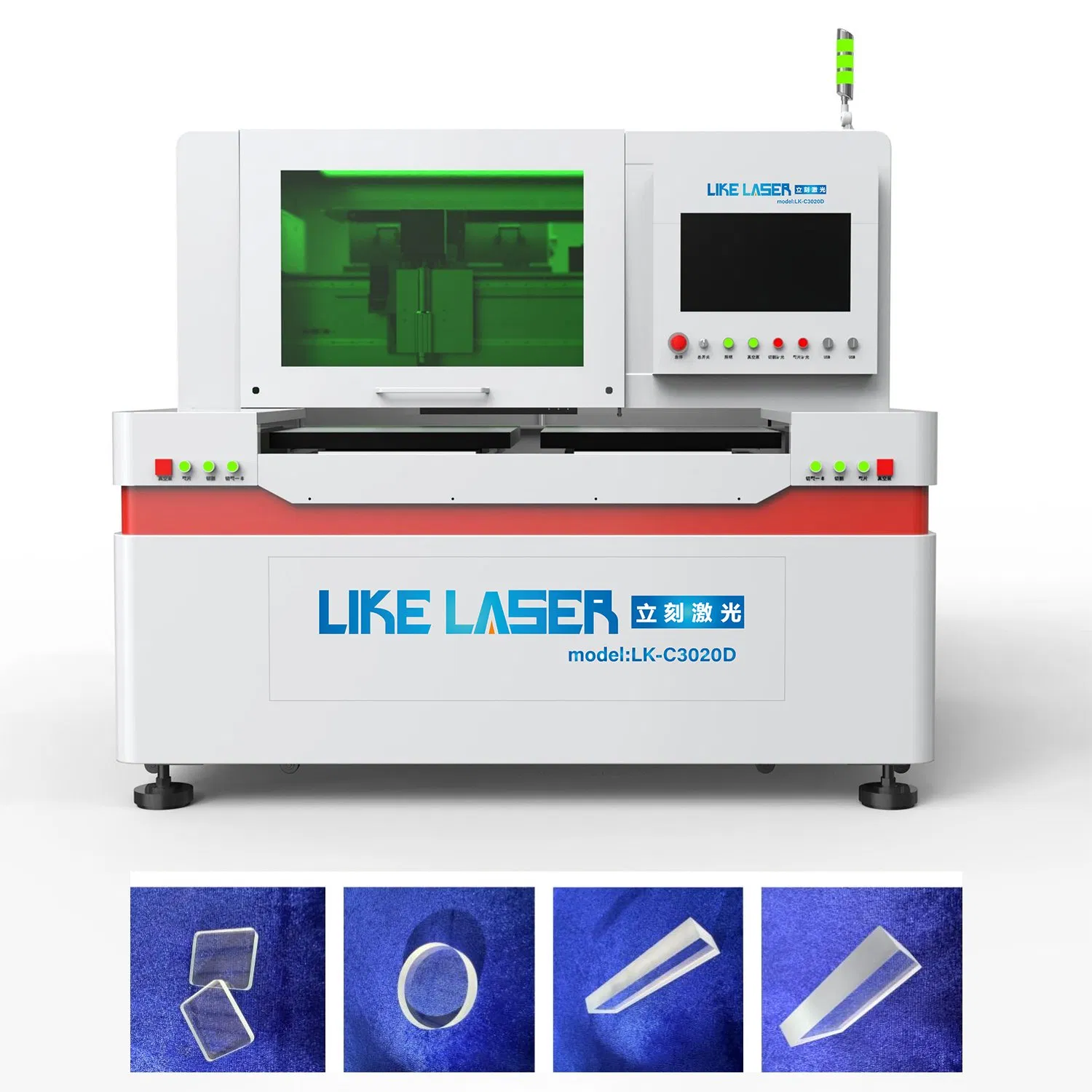

2025 New Tempered Optical Automotive Glass Laser Picosecond Cutting Machine
Product Description
Overview & Basic Info
Model

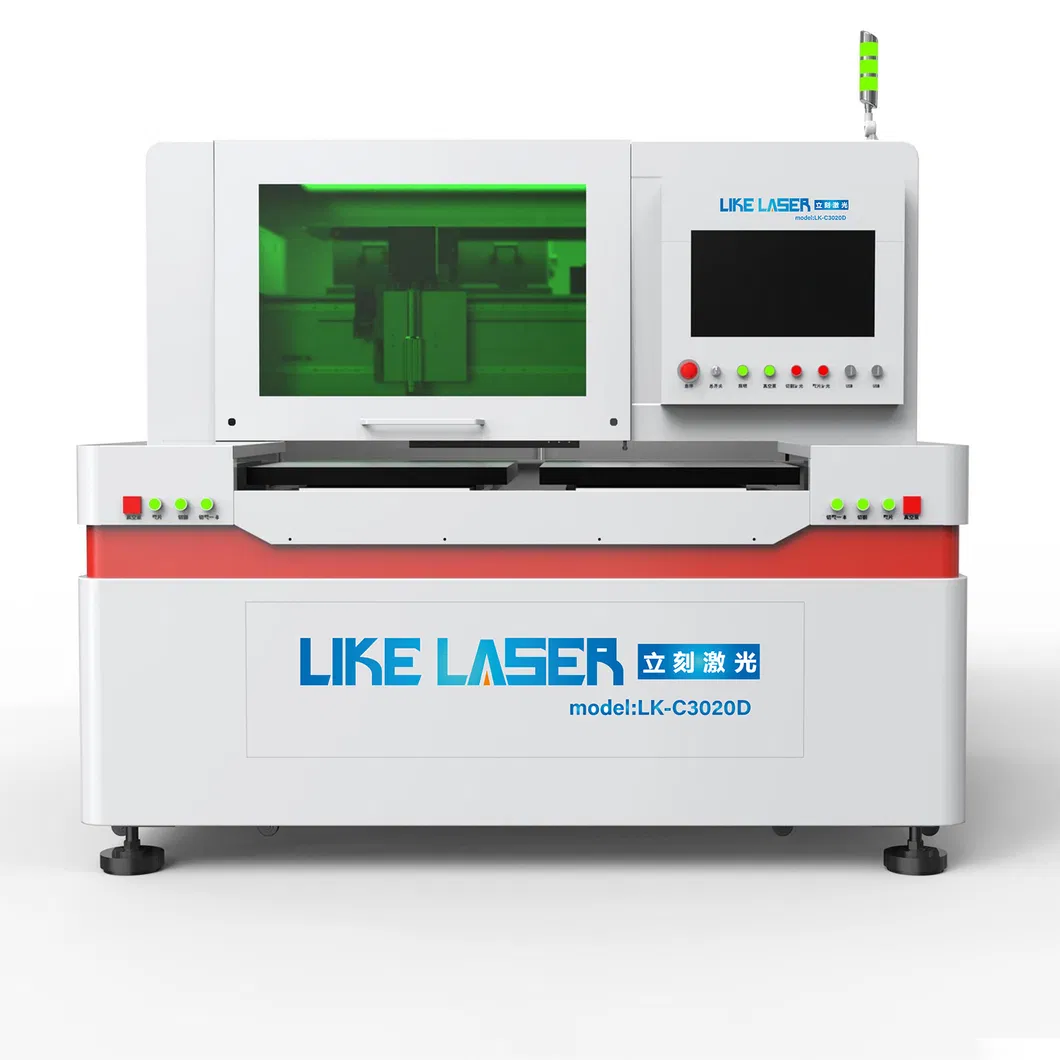

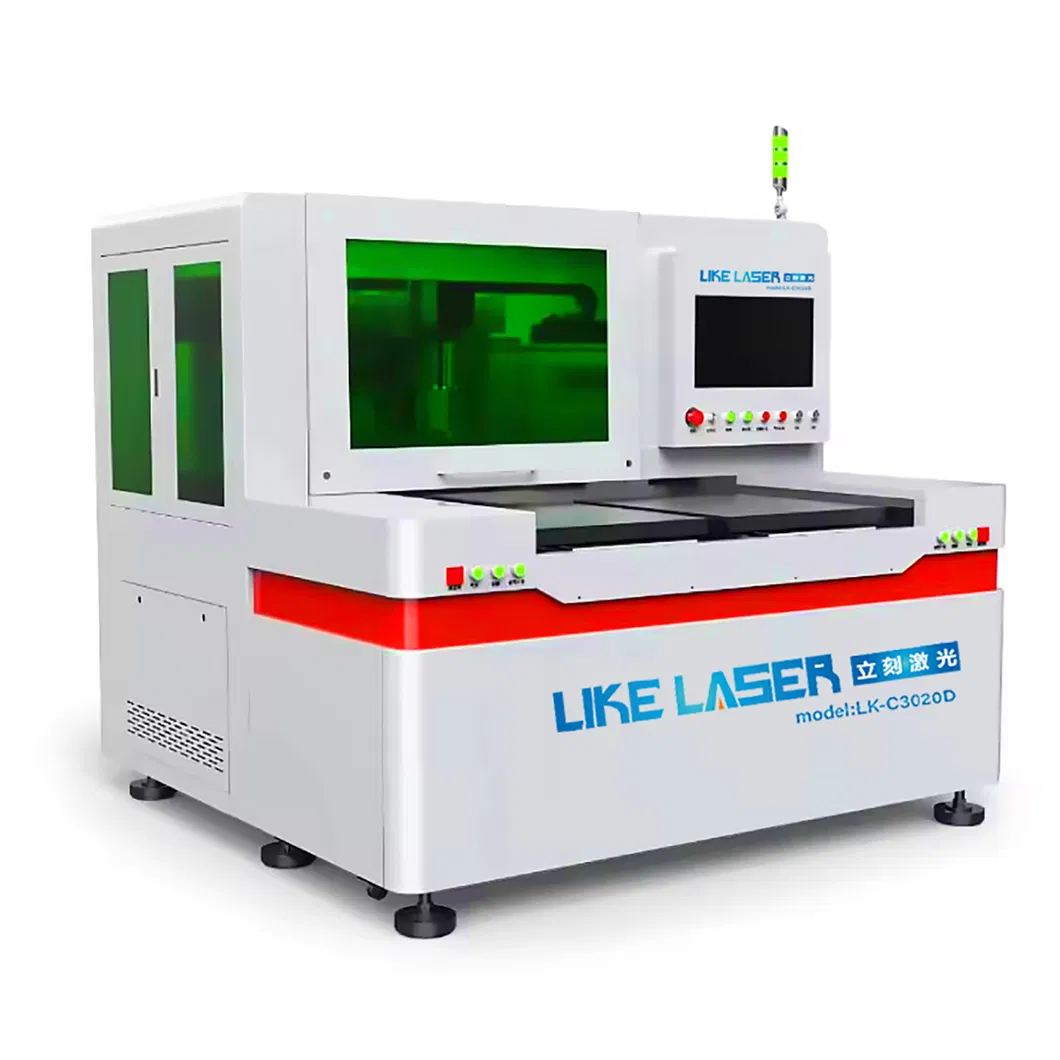

LK-GC7010B / LK-C3020D
Laser Power
120W
Cooling System
Water Cooling
Technical Class
PS/CO2
Applicable Material
Glass, Sapphire, LCD
Laser Technology
Laser Control Fault Cutting
Laser Lifetime
100,000h
Max Thickness
20mm
Minimum Aperture
0.3mm
Accuracy
± 2 microns
Product Description
The Picosecond laser glass cutting machine is a high-efficiency, automatic system utilizing a picosecond laser source and RF CO2 laser source technology. This advanced machinery is designed for the high-precision demands of modern glass processing industries.
Core Advantages:
Using a self-developed AI control system, high-end custom picosecond light source, and double drive linear motor. It offers non-contact cutting with no consumables, no pollution, and low power consumption. Cutting speeds reach up to 15m/min, solving traditional CNC issues like edge collapse and slow speed.

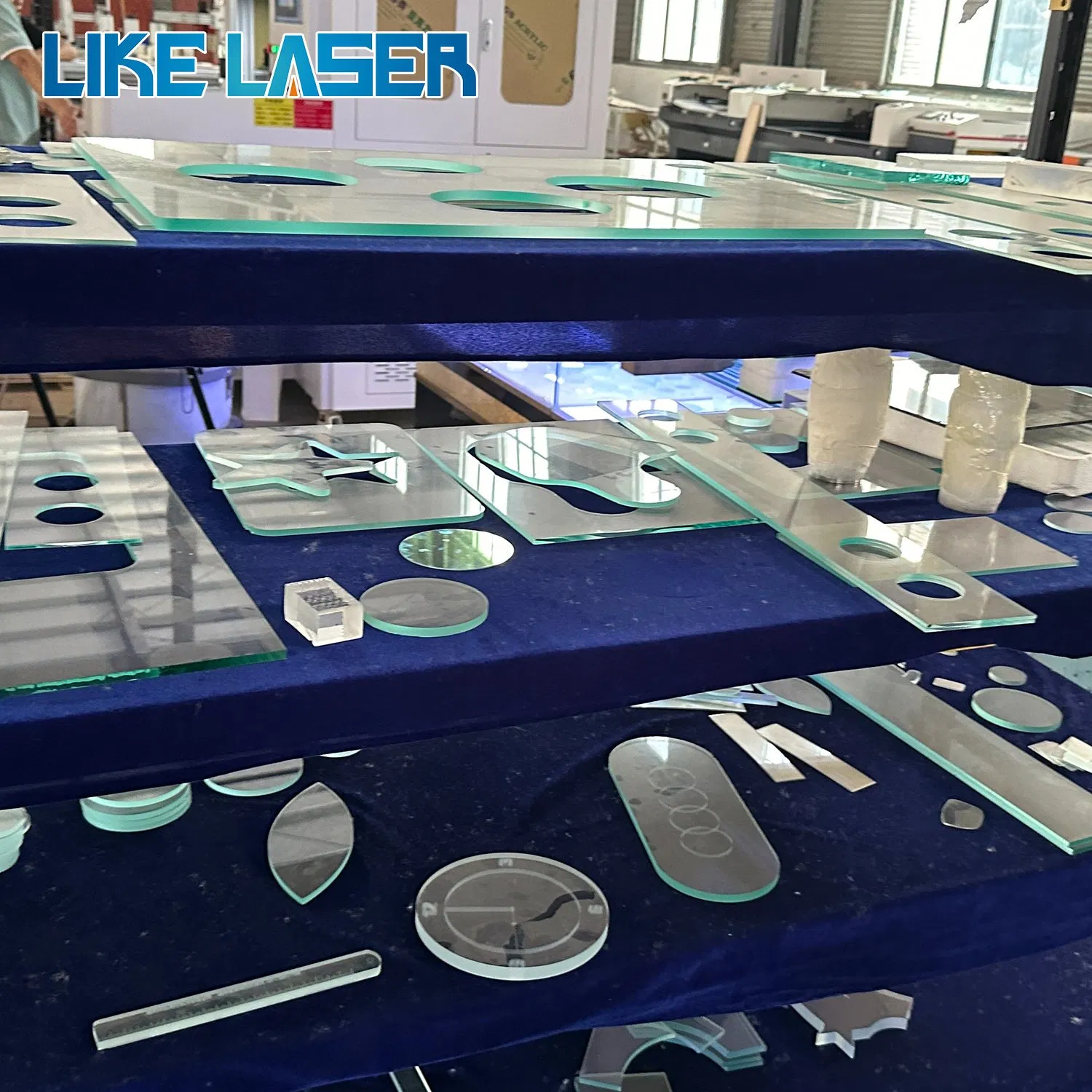

Scope of Application

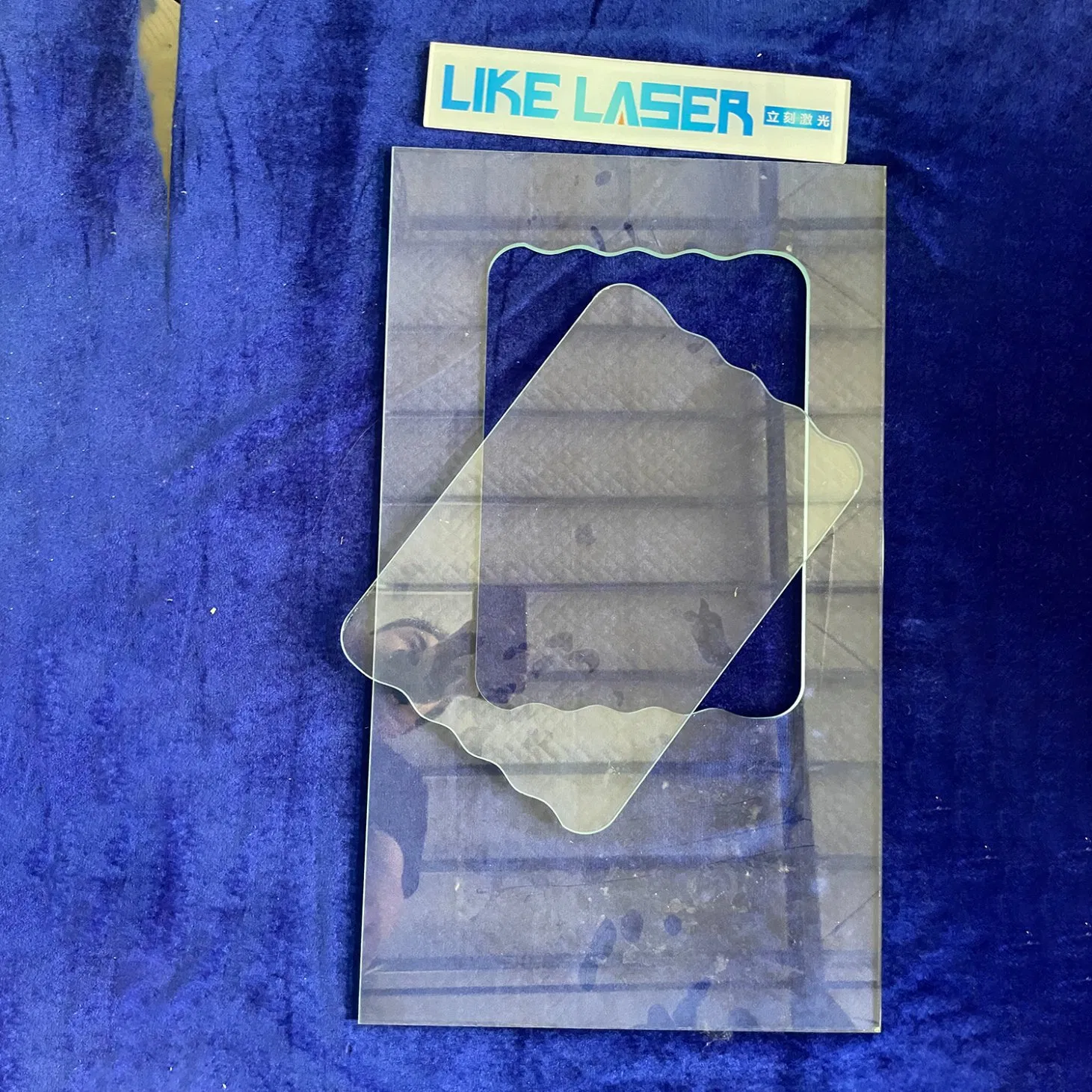

Mobile & AutomotiveReinforced and non-reinforced glass, phone covers, car glass, and camera plates.
Sapphire MaterialsSapphire cover plates and sapphire light strips (LED strips).
Display TechnologyLCD glass cutting, shaped screen inverted R/U/C angles.
Optical ComponentsFilter cutting, mirror cutting, and high borosilicate glass.

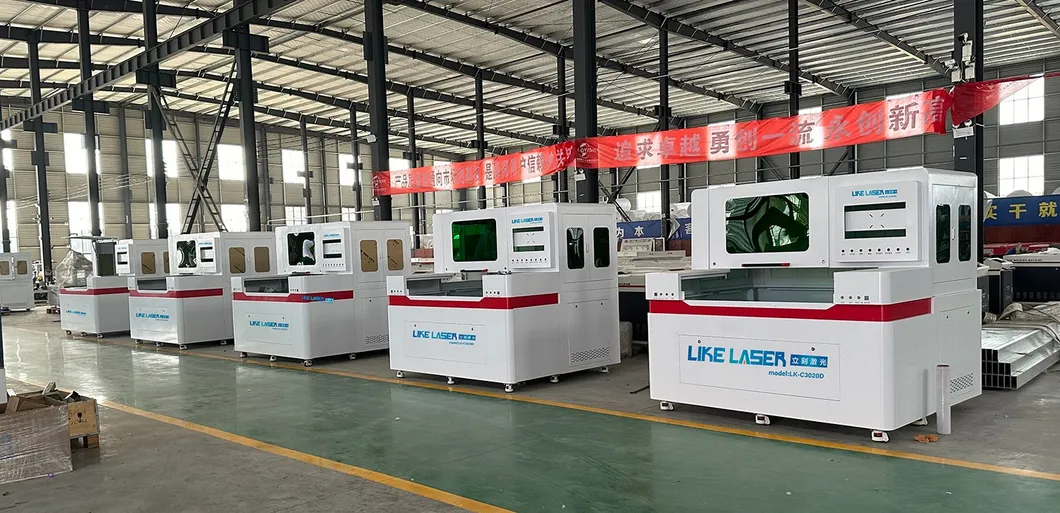

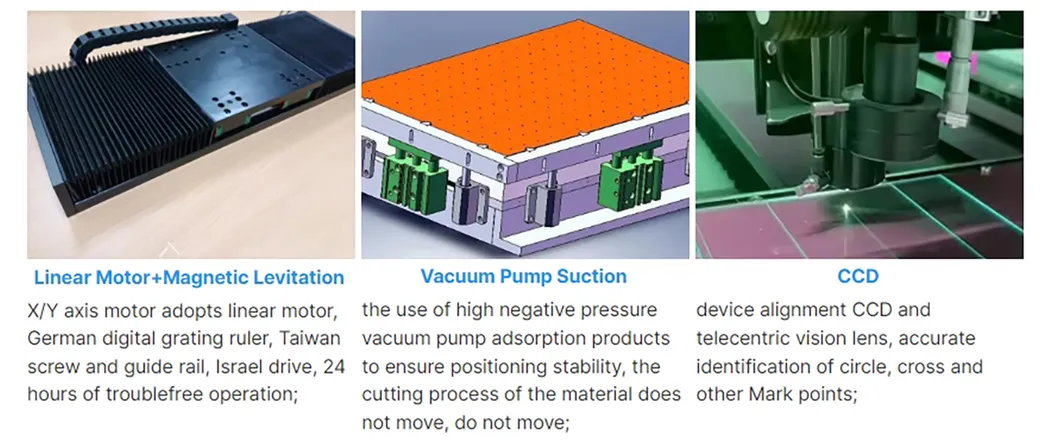

The Biggest Features

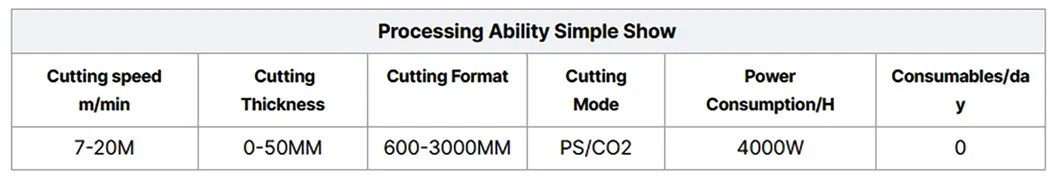

Product Parameters
| Model | LK-GC7060D | LK-GC8060D | LK-GC1380A |
|---|---|---|---|
| Size | 700*600mm | 800*600mm | 1300*800mm |
| Workbench | 2 | 2 | 1 |

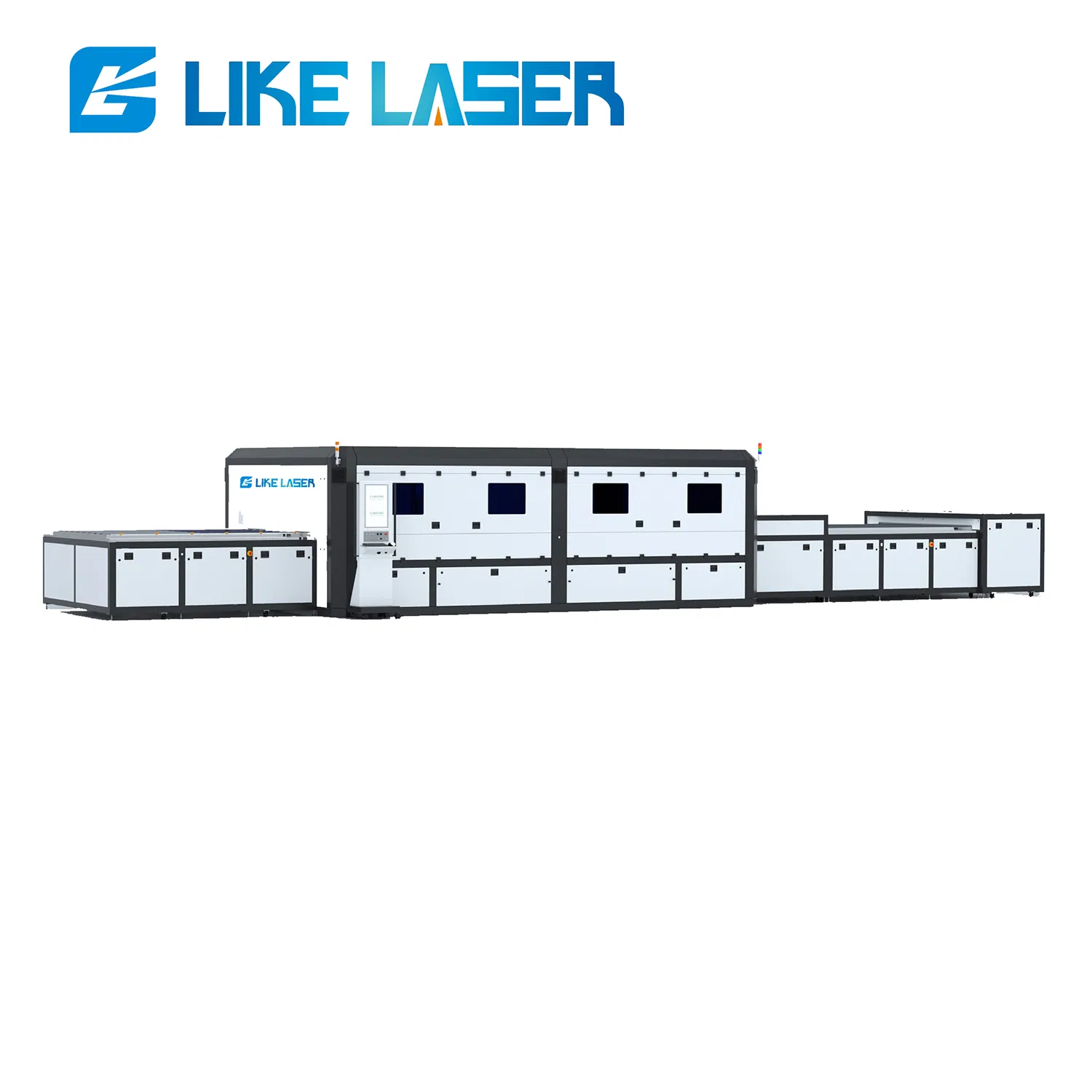

| Large Format Model | LK-GC2010D | LK-GC2412D | LK-GC3020A |
|---|---|---|---|
| Size | 2000*1000mm | 2400*1200mm | 3000*2000mm |
| Workbench | 1 | 1 | 1 |

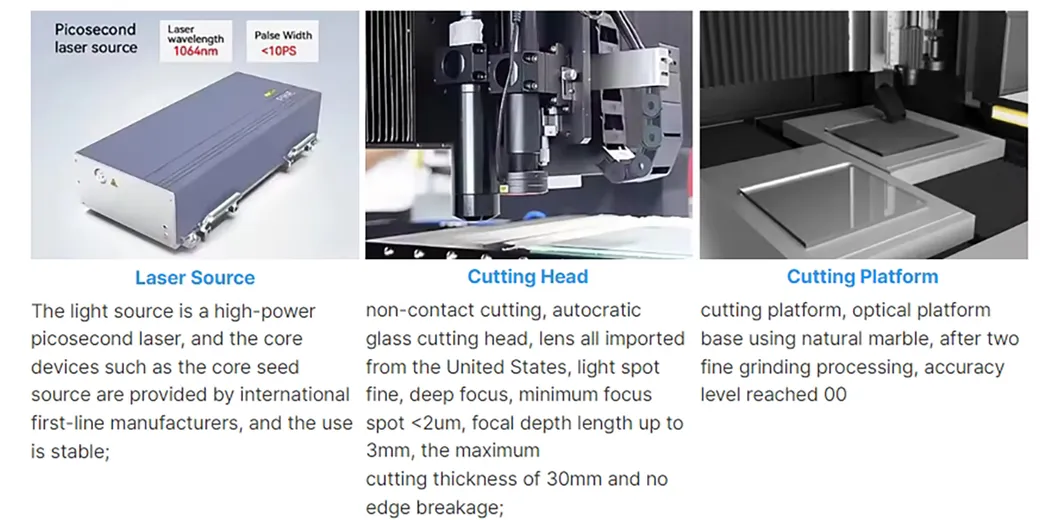

| Picosecond Pulse Laser Source Details | |
|---|---|
| Wave Length | 1064nm, beam quality: M2 < 1.3 |
| Pulse Length | < 10PS; Pulse frequency: 1Hz-1000kHz |
| Cooling Mode | Water Cooling |
| Focusing Spot | < 2um |
| Visual System | 5 million CCD with adjustable Ring light |
Packaging & Shipping
Package Size
2300.00cm * 2200.00cm * 1900.00cm
Gross Weight
80000.000kg
Lead Time
15 days (1-1 Pieces); Negotiable (>1 Pieces)
Packing
Wooden Packing
Quality Certifications
Our equipment has passed ISO90001 international quality system certification, European Union CE certification, and American certification standards to ensure global compliance and safety.
Frequently Asked Questions
What materials can this picosecond laser machine cut?
It is designed for reinforced and non-reinforced glass, sapphire, LCD glass, quartz glass, high borosilicate glass, and various optical mirrors.
What is the cutting precision of the equipment?
The machine utilizes a double-drive linear motor and high-end picosecond source to achieve an accuracy of up to ± 2 microns.
How does laser cutting compare to traditional CNC or water jet cutting?
Laser cutting is a non-contact process with no consumables or pollution. It offers higher efficiency (up to 15m/min), eliminates edge collapse, and has a significantly lower scrap rate.
What cooling method does the system use?
The system uses a professional water cooling system to ensure stable operation of the picosecond pulse laser source.
Is the machine capable of cutting curved glass?
Yes, it supports single-sided curves (1200-2000) and double-sided curves (400-2000) as an optional feature.
What industries is this machine suitable for?
It is widely used in automotive glass, smart wearable watch industry, medical lens production, camera lenses, and smartphone glass cover plates.
