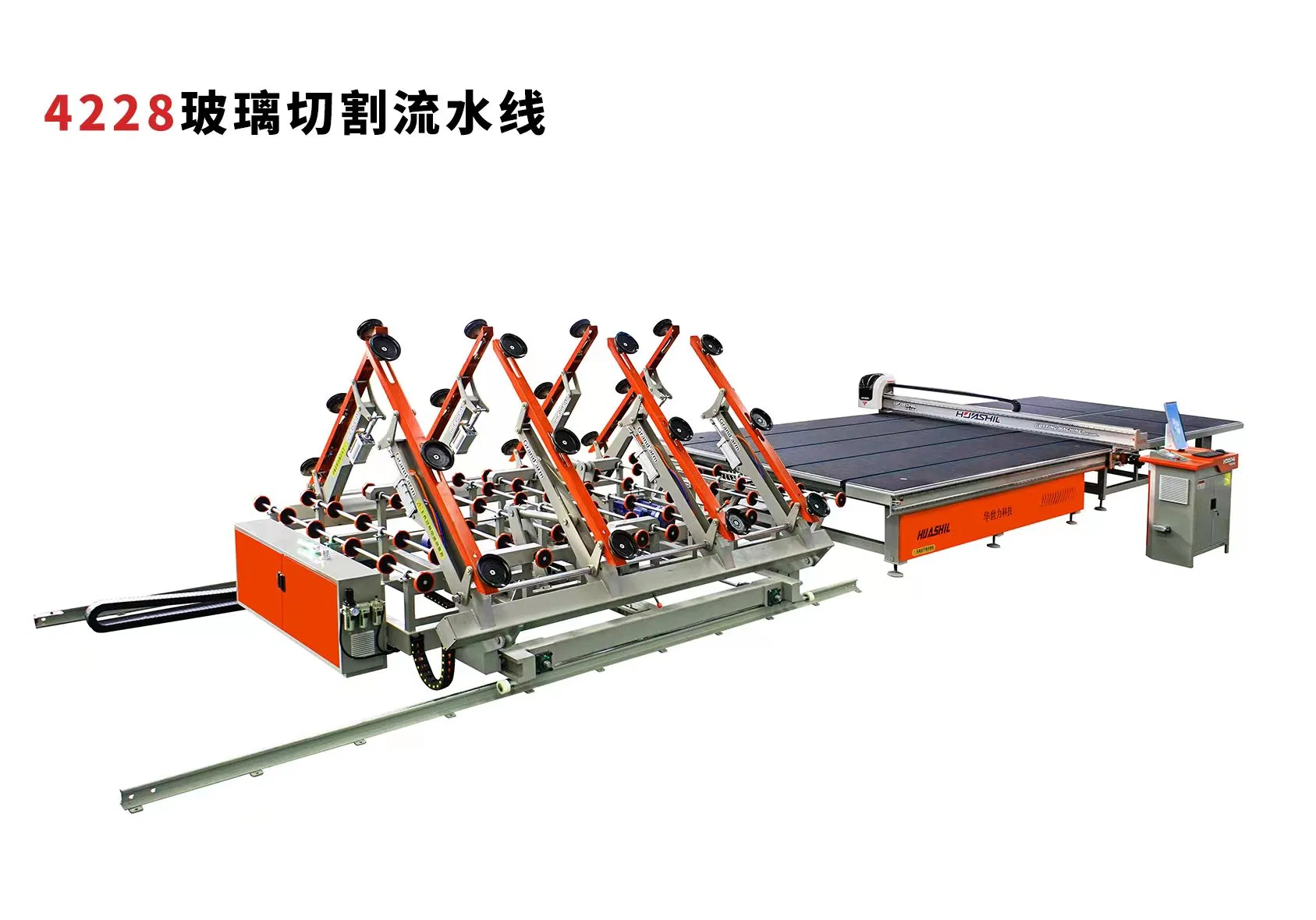

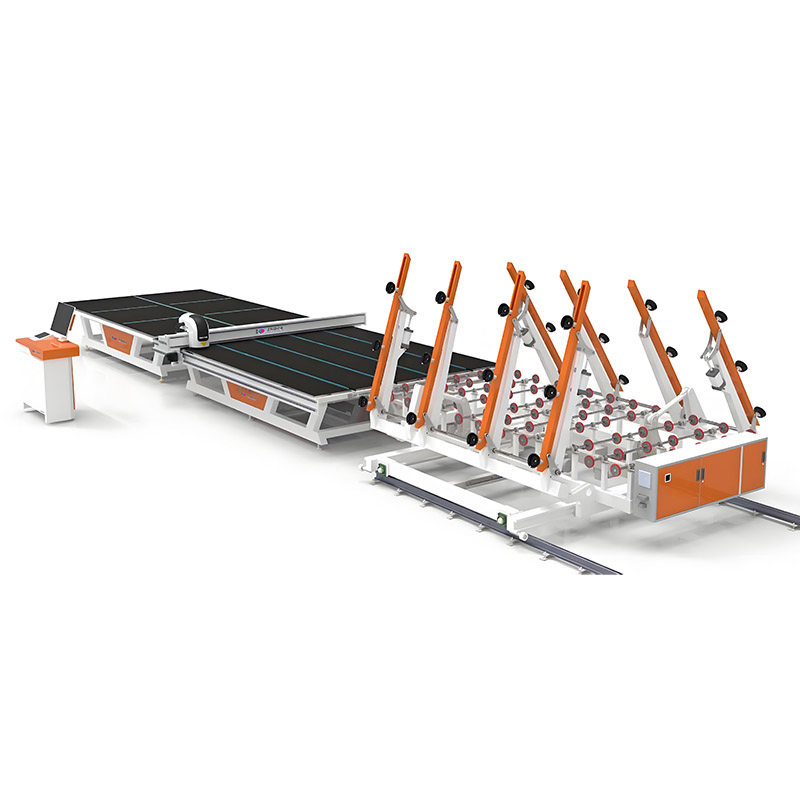

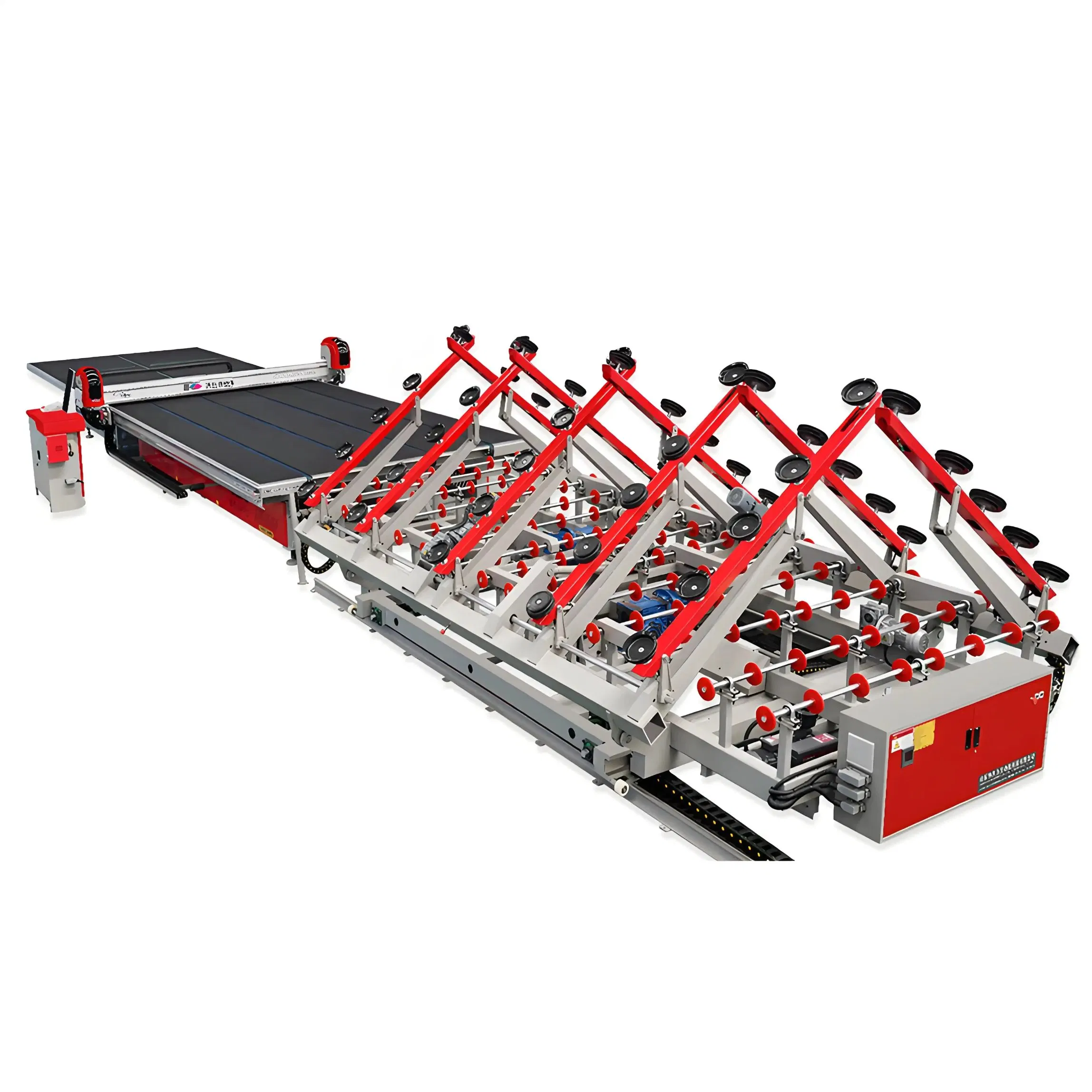

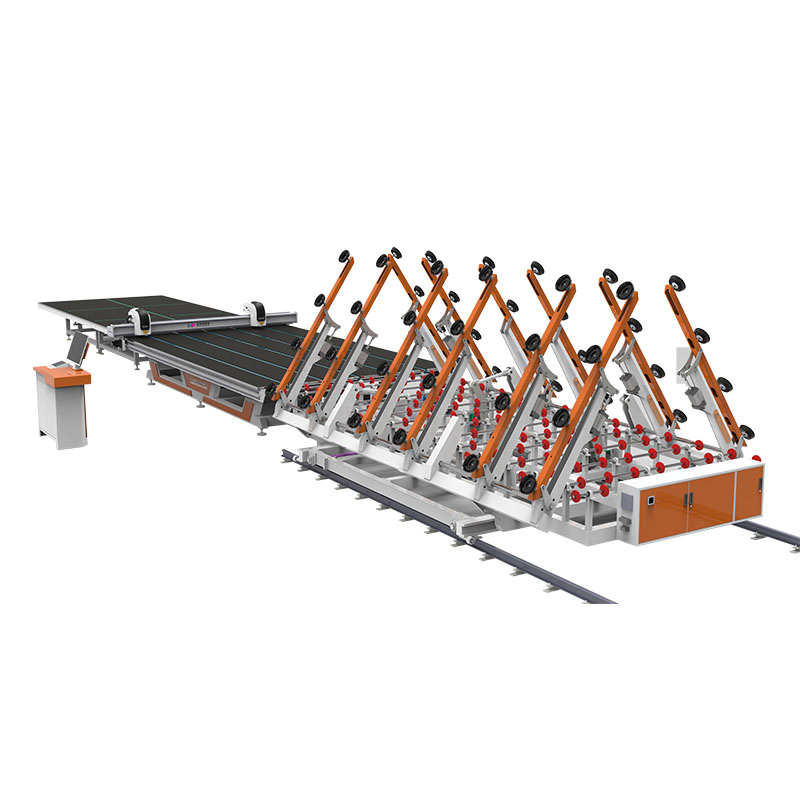

4228/5133 CNC Jumbo Automatic Float Glass Cutting Machine Processing Small Picosecond Laser Tempered Laminated Cut Robot Edge Loading Machine
Product Description
Technical Specifications
Model NO.ZK-4428
Power Supply380/400/220V
Max Cutting Size4200 × 2800mm
Cutting Thickness3~19mm
Linear Accuracy± 0.15mm
Abnormity Accuracy± 0.20mm
Cutting Speed0-180m/Min
Conveying Speed0-25m/Min
External Dimension5000×3300×1500mm
Equipment Weight2600kg
Total Power8kw
Loading Size4200 × 2800mm

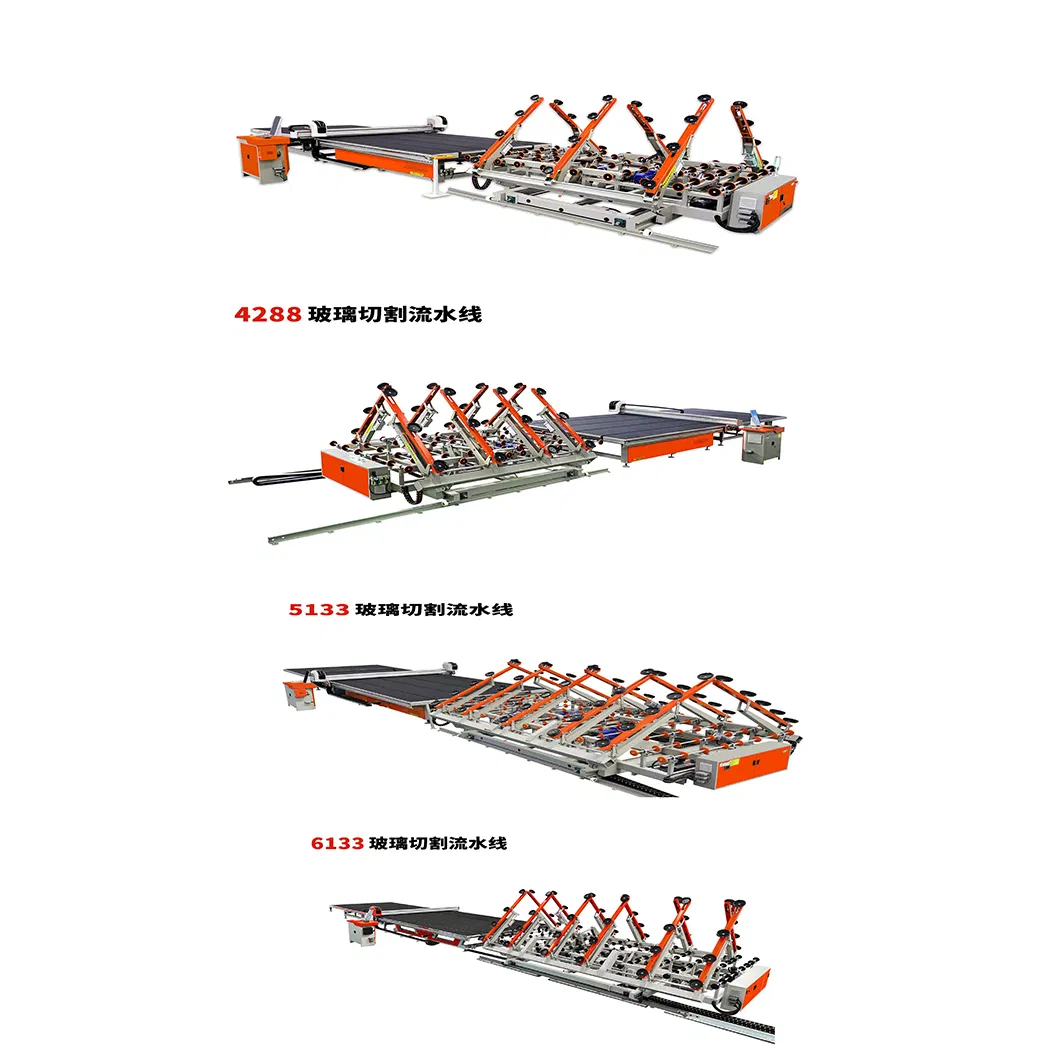

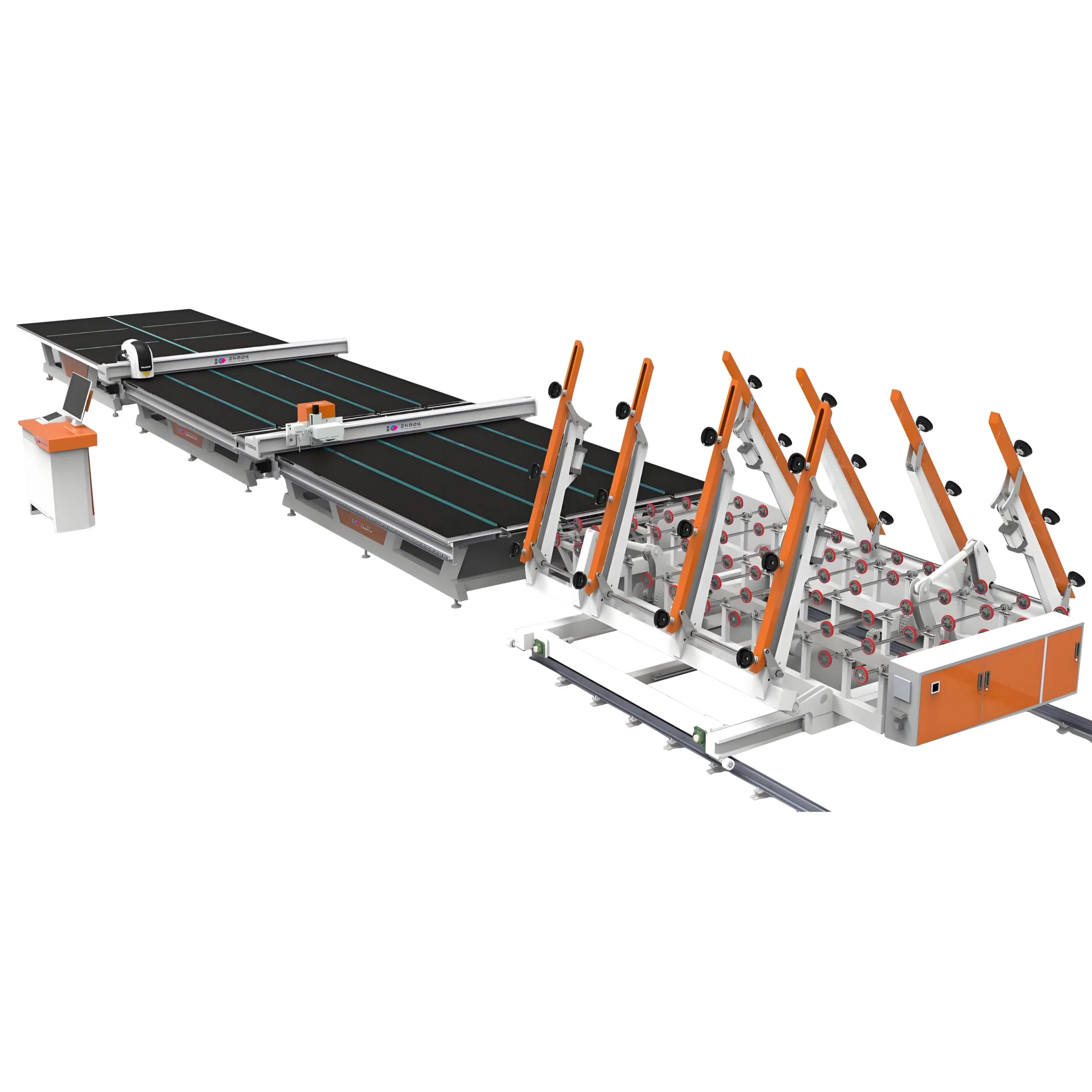

CNC Jumbo Automatic Glass Cutting Line
4428/5133/6133 Series High-Efficiency Processing
| Model | Max. Glass Size | Min. Glass Size | Thickness | Dimensions (L*W*H) | Total Power | Air Pressure |
|---|---|---|---|---|---|---|
| 3829 | 3660*2800mm | 50*50mm | 3-19mm | 12700*3800*2400 | 21.75kW | 0.6-0.8Mpa |
| 4228 | 4220*2800mm | 50*50mm | 3-19mm | 13900*3800*2400 | 22kW | 0.6-0.8Mpa |
| 5133 | 5100*3300mm | 50*50mm | 3-19mm | 17100*4450*2400 | 30kW | 0.6-0.8Mpa |
| 6133 | 6100*3300mm | 50*50mm | 3-19mm | 20140*3900*2400 | 34kW | 0.6-0.8Mpa |
Core Functionalities
The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table. Suitable for straight and irregular cutting of flat glass in construction, decoration, home appliances, and more.
1
Automatic Loading
Telescopic arm automatically finds glass. System detects suction firmly before placing glass on the table.
2
Intelligent Control
One-button control to finish loading, cutting, and labeling simultaneously.
3
High Precision
Optimization rate up to 99% using advanced Italian software for high-speed cutting.
4
Fault Detection
Real-time automatic fault detection and alarm system for quick troubleshooting.
Equipment Details

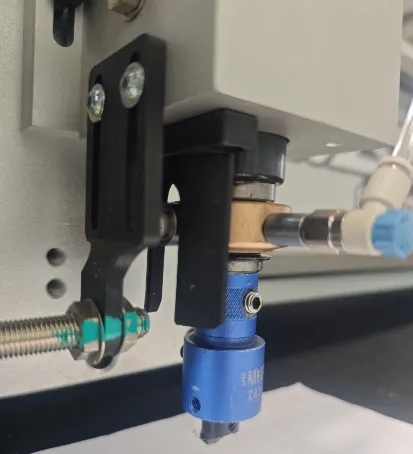

Cutting Technology: Professional control system for straight and special-shaped glass. Precision pressure valves allow the cutting head to fit glass surfaces perfectly, avoiding quality issues.

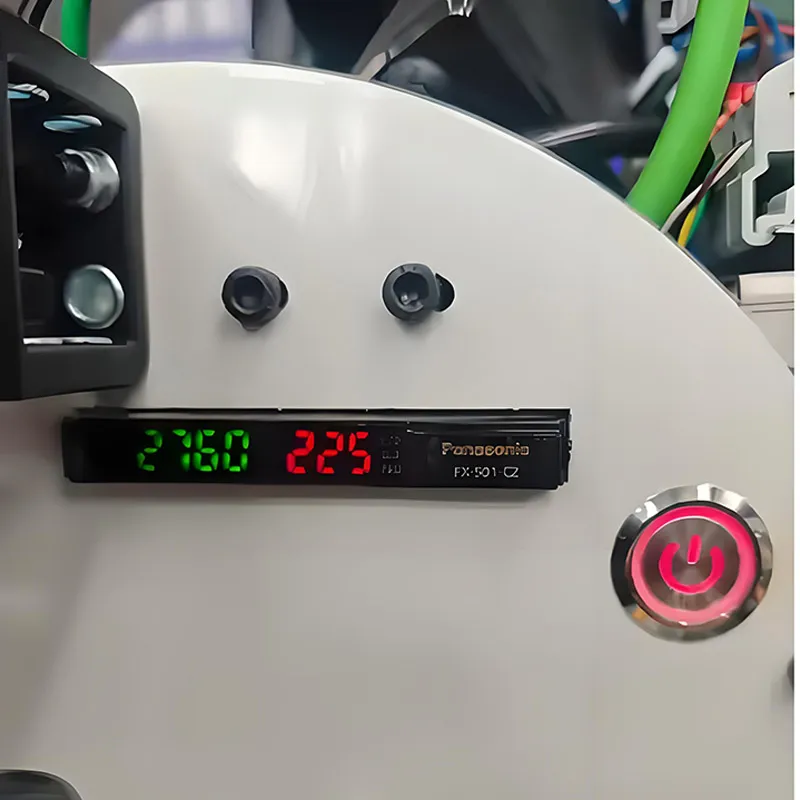

Intelligent Scanning: Accurately detects actual position and deflection angle, automatically adjusting the path to improve efficiency.

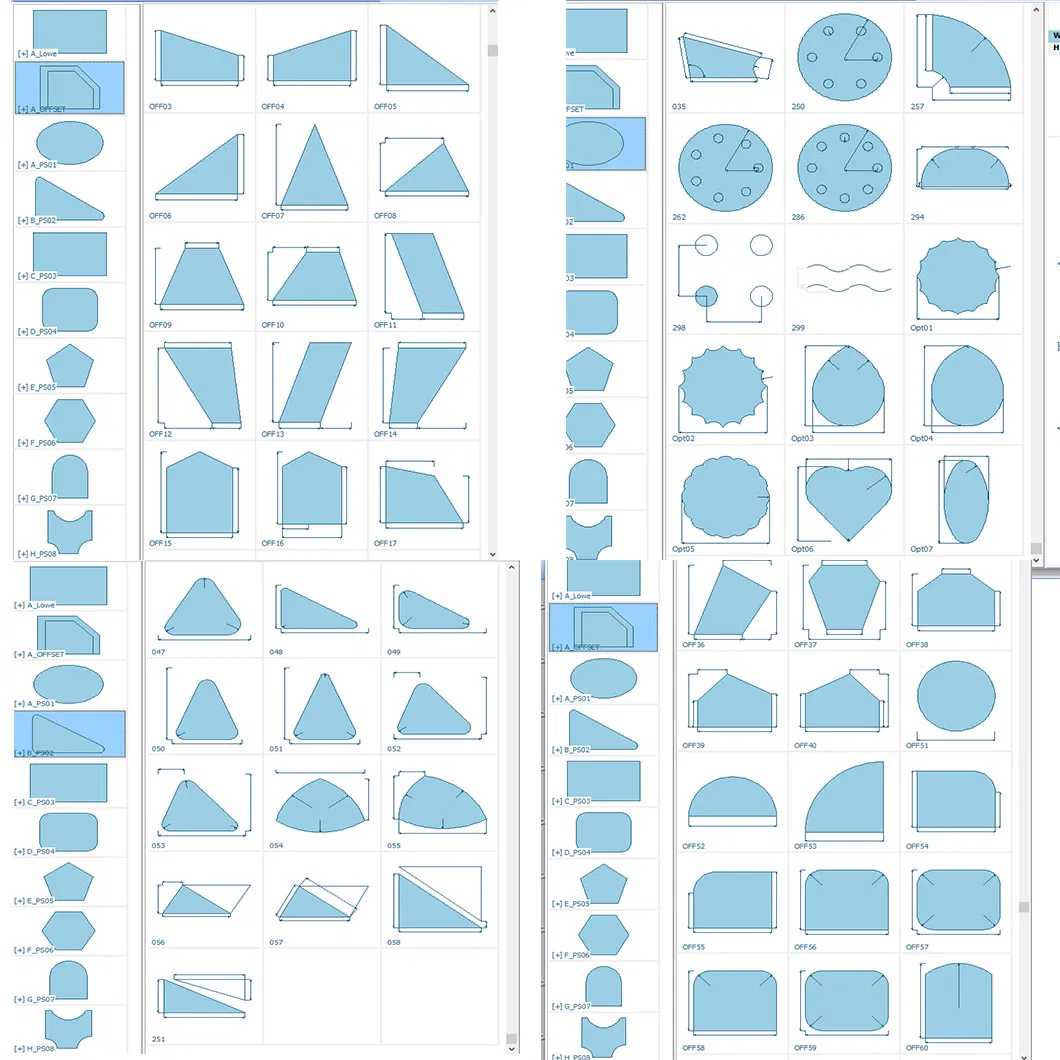

Cutting Graphic Display

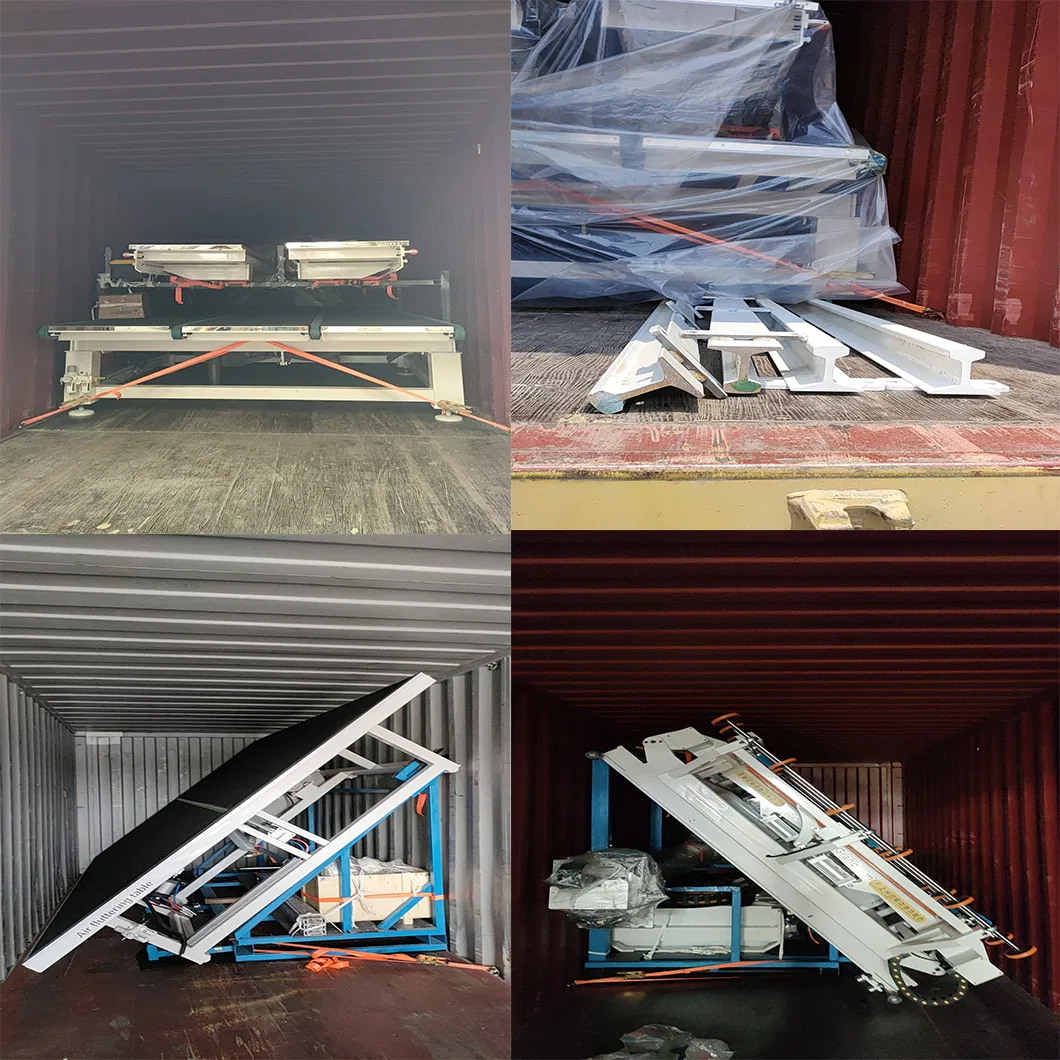

Packaging & Delivery
Package Size4200 * 4000 * 3000 cm
Gross Weight20000.00 kg
Package TypeWooden Box / Steel Frame
Why Choose Our Solutions
- Professional glass production solutions with 24-hour online support.
- Advanced production equipment and strict quality testing systems.
- Competitive pricing directly from the manufacturer with no middleman.
- Customizable OEM & ODM designs for brand and packaging.
- Fast delivery times facilitated by independent manufacturing facilities.
Frequently Asked Questions
Q: What is the maximum thickness of glass the machine can cut?
A: The machine is designed to handle glass thicknesses ranging from 3mm to 19mm with high precision.
Q: How accurate is the cutting process for irregular shapes?
A: For irregular or abnormity shapes, the cutting accuracy is maintained within ± 0.20mm, while linear cutting accuracy is ± 0.15mm.
Q: What optimization software does the system use?
A: The machine utilizes premium Italian Optima optimization software and is compatible with standard G code from various domestic softwares, achieving an optimization rate of up to 99%.
Q: Does the machine include an automatic loading function?
A: Yes, it features an automatic loading system with telescopic arms and suction sensors that automate the picking and placement of glass onto the table.
Q: Is it possible to perform laser marking or labeling?
A: Yes, optional functions include automatic labeling, laser marking, and Low-e film removal to suit specific production requirements.
Q: How is the equipment maintained for long-term stability?

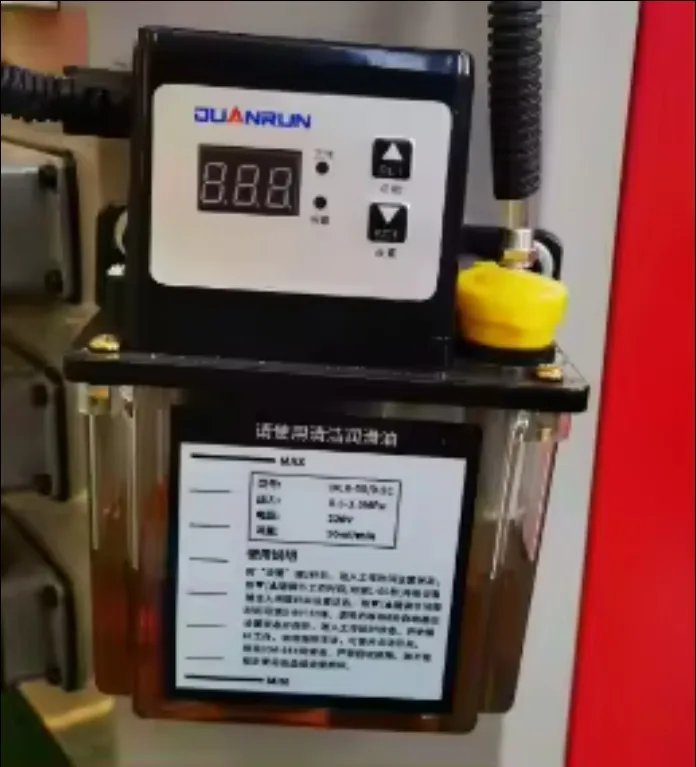

A: The machine includes an automatic rail lubrication system and a real-time fault detection alarm to ensure continuous stability and easy maintenance.
