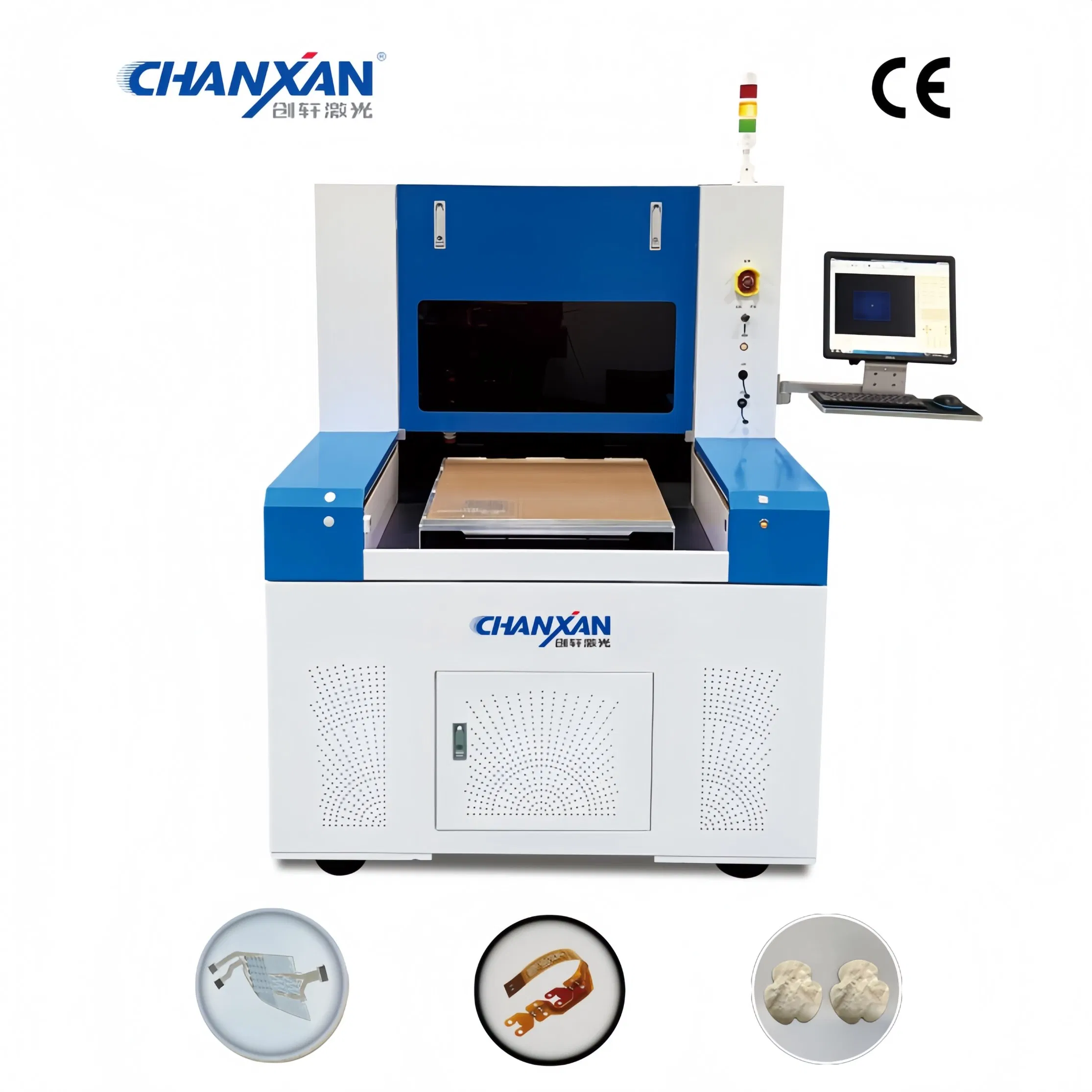

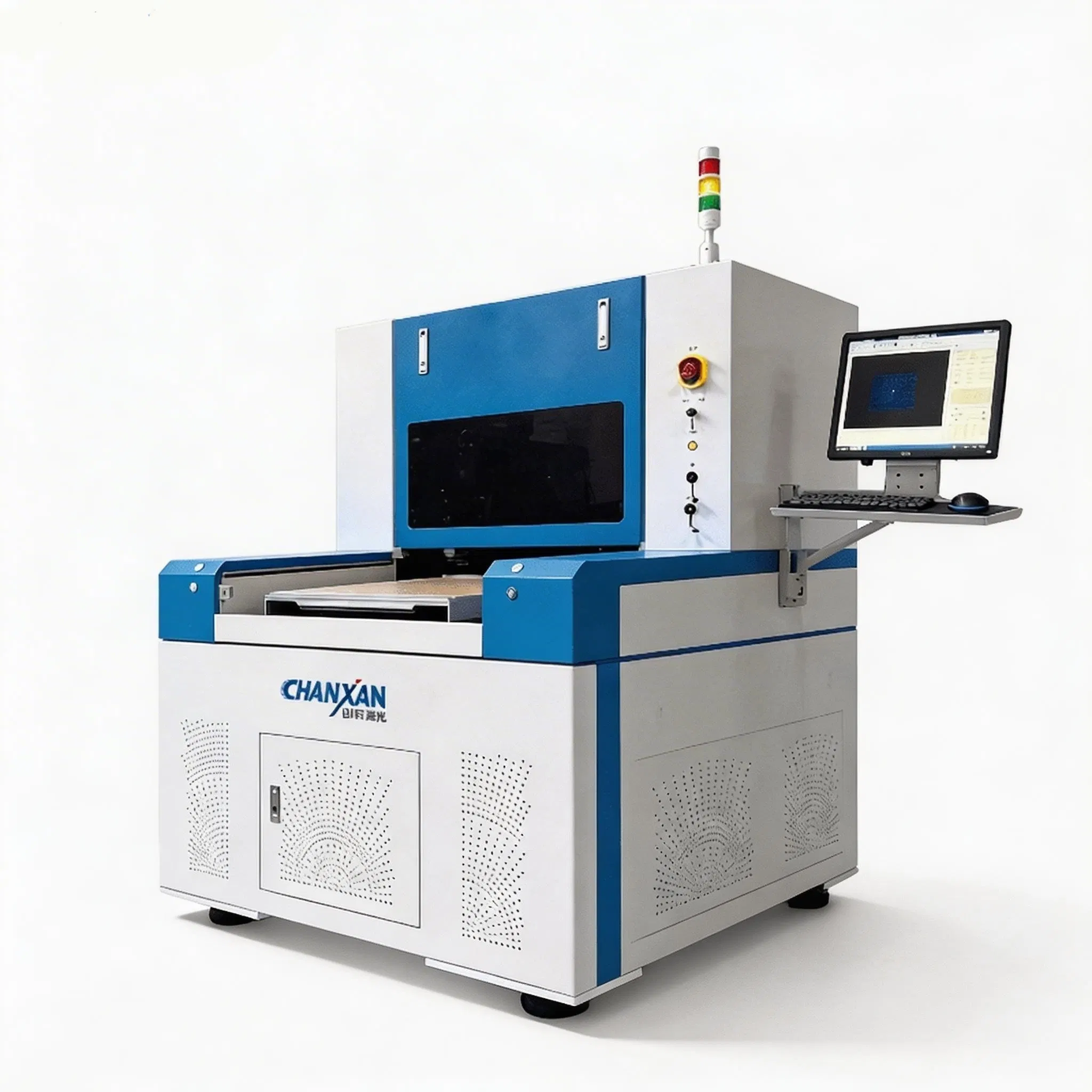

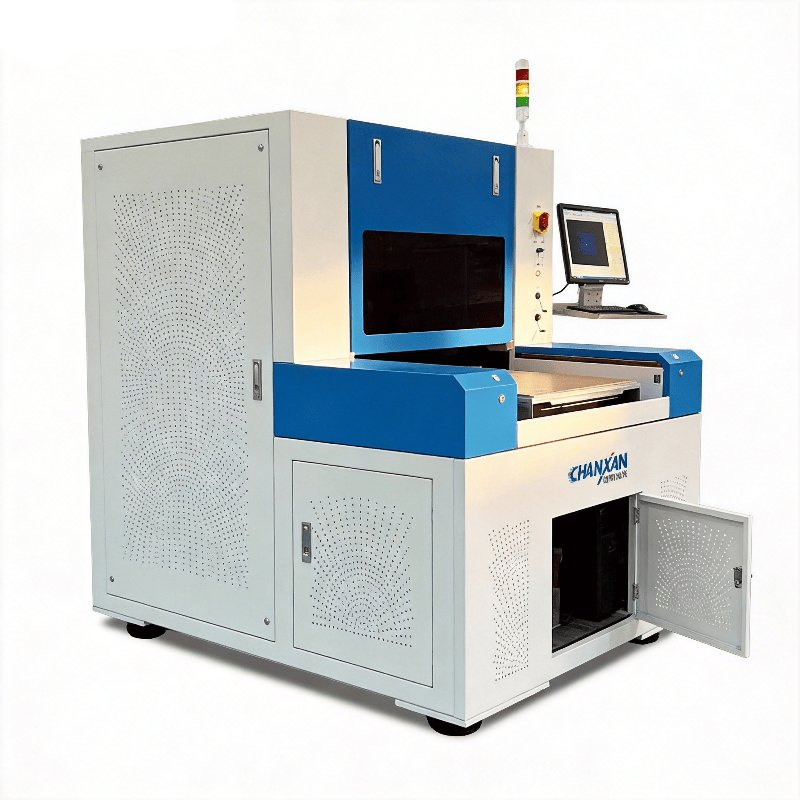

Efficient Stable Picosecond China Laser Cutting Machine for Pi Film Metal Foil
Product Description
🚀 Overview & Basic Info
Model NO.
CS-0605-V-A
Application
Aerospace, Automotive, Semiconductors/3c
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Nonmetal
Structure Type
Gantry Type
Laser Classification
Solid Laser
Laser Type
Ultrafast Laser
Laser Power
10W/30W/35W
Working Area
500*610mm
Positioning Accuracy
±1um
Processing Speed
≤3000mm/S
Certification
CE
Processing Thickness
3mm
Production Capacity
100sets/Month
🎯 Product Description

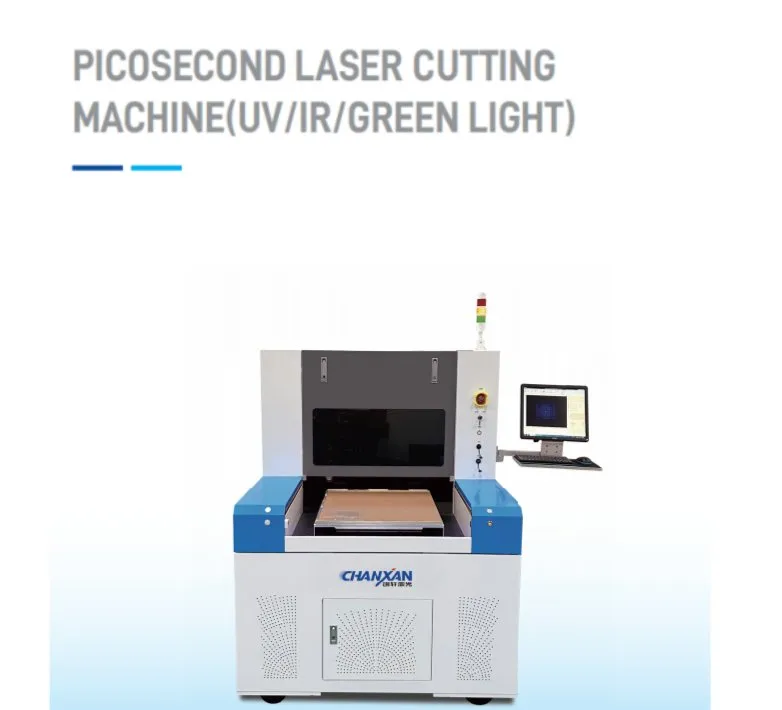

✨ Picosecond Laser Cutting Machine (UV/IR/Green Light)
We provide comprehensive laser solutions for precision processing in the 3C industry, including core techniques such as FPC precision cutting, ultra-thin PCB cutting, high-resolution marking, plating removal, metal deep engraving, and micro-hole machining. Compared to traditional processing techniques, our laser solution comes with groundbreaking advantages: processing accuracy of ±5 micrometer, satisfying the miniaturization requirement of electronic components; non-contact processing that poses zero damage to the product; and flexible production without any need for molds, significantly reducing production cost.
💎 Equipment Advantages
- Ultra-short pulse lasers: Achieve "cold" processing with high efficiency and minimal Heat Affected Zone (HAZ).
- Precision System: Equipped with linear motor driver system and marble platform for extreme stability.
- Auto Alignment: High-resolution CCD automatic alignment guarantees accurate positioning.
- Stable Path: High-quality laser emitter and solid protection of the entire optical path for long-term stability.

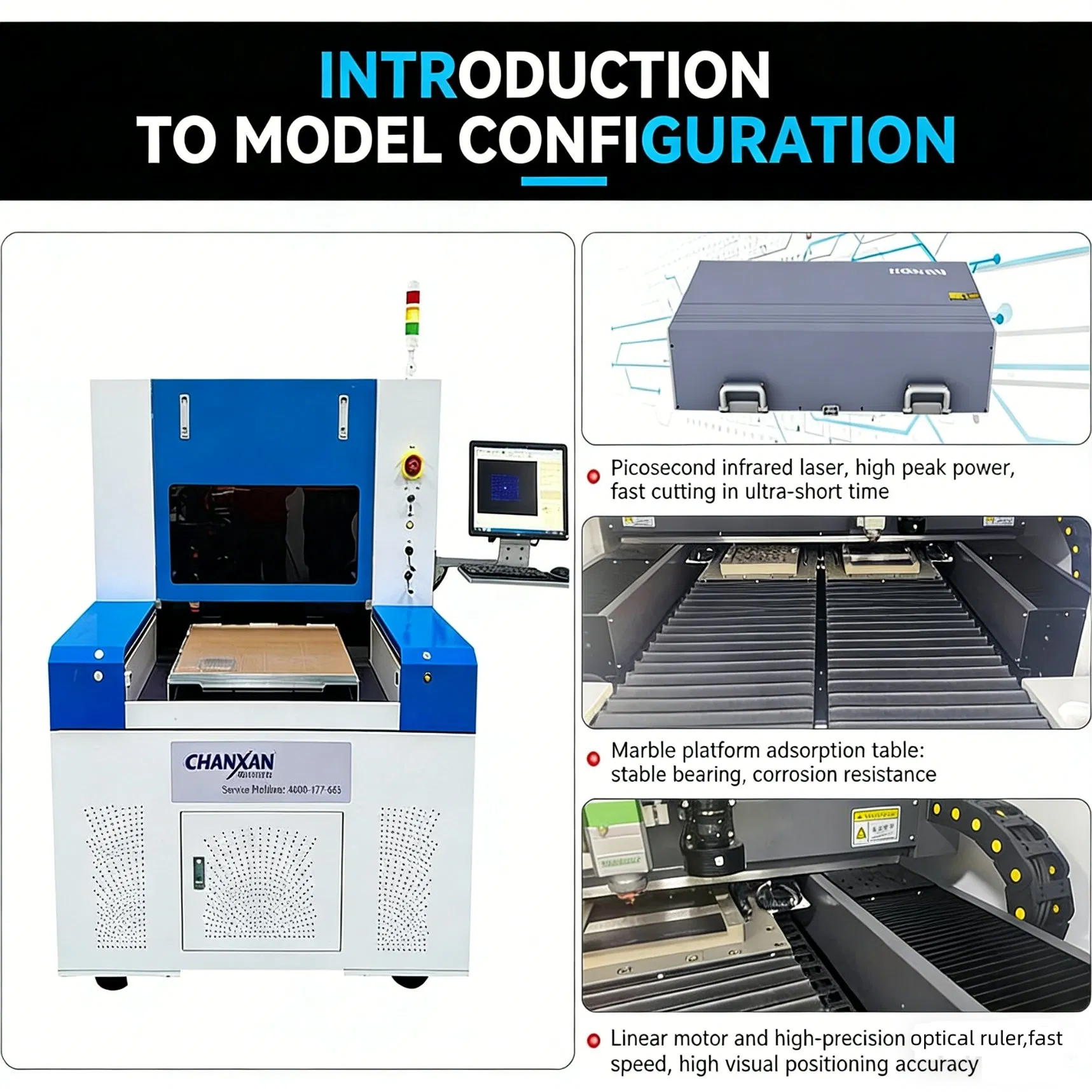

⚙️ Key Configurations
X/Y Linear Motor System: Driven by linear motors on a marble platform, ensuring precision with no long-term wear and low maintenance.
High-Pixel CCD: Ensures precise alignment for micro-sized cuts and complex irregular patterns.
Telecentric Lens: Supports a maximum single processing area of 200×200mm without the need for stitching.
📊 Technical Specifications
| Laser Power | 10W/30W/35W | Dimensions | 2200*1500*1750mm |
| Working Area | 500*610mm | Certification | CE |
| Positioning Accuracy | ±1um | Machinery Test Report | Provided |
| Processing Speed | ≤3000mm/s | Video Outgoing-Inspection | Provided |
| Processing Accuracy | ≤30um | Warranty | 1 Year (Core Components) |
| Focus Spot | ≤20um | Scan Range | 50*50um |

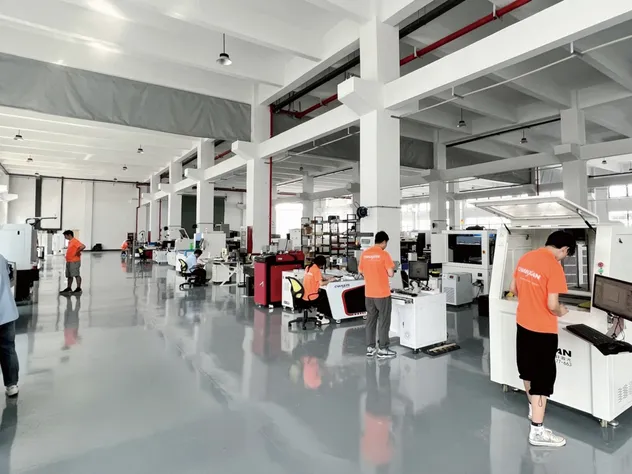

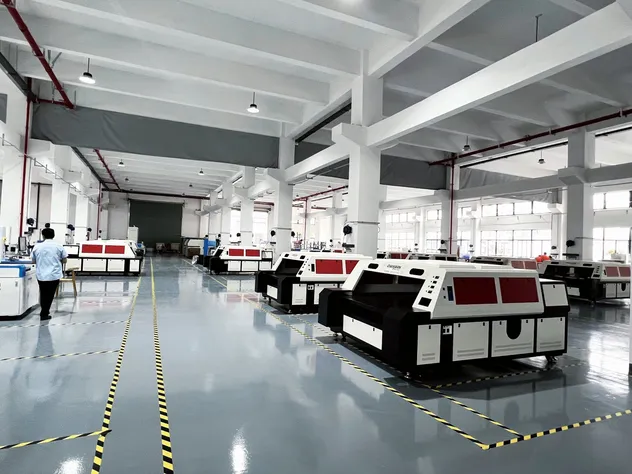

🏭 Production Strength

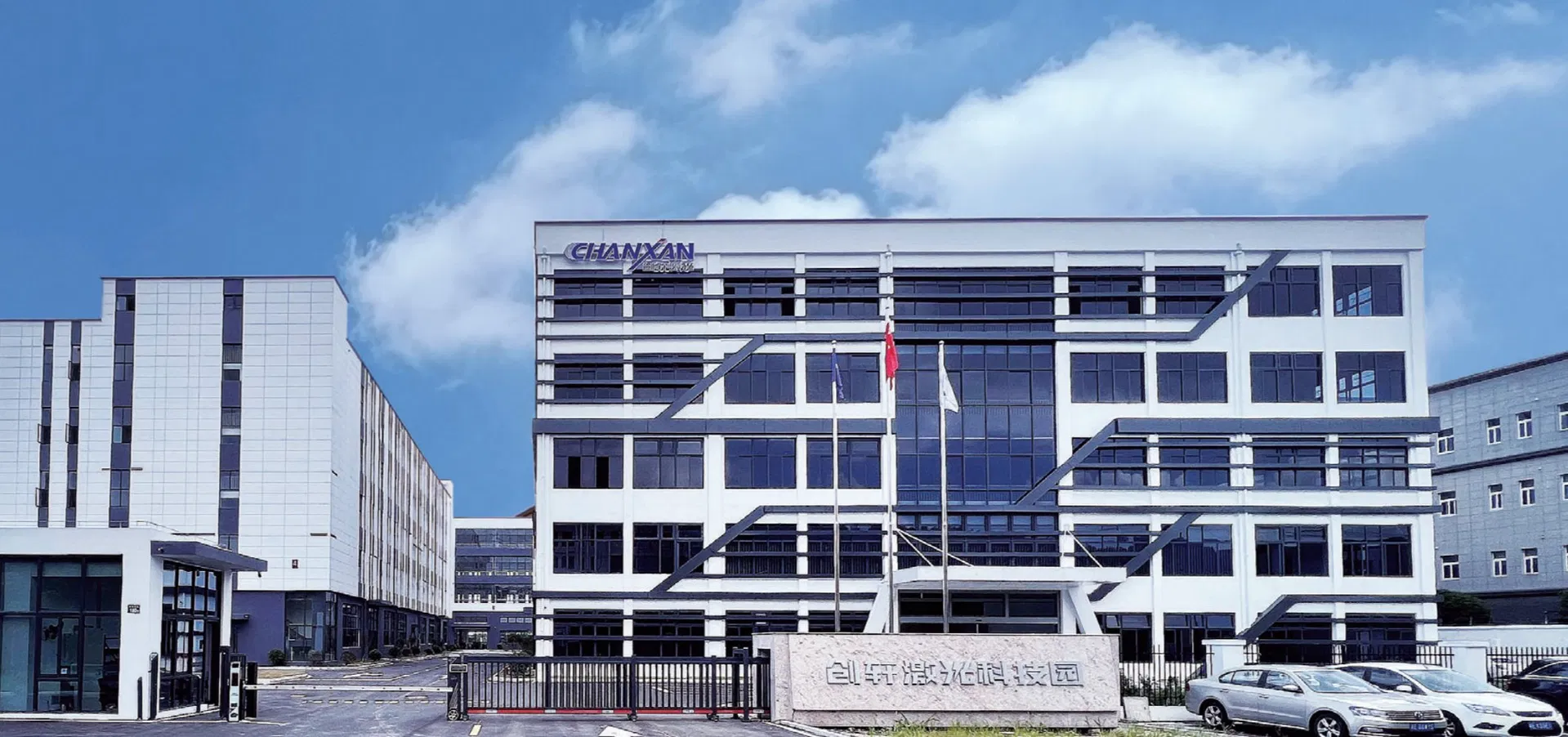

📍 Scale: 80,000 square meters of production factories across five major bases.
📜 Innovation: National high-tech enterprise owning 150 national patents.
🌍 Global Reach: Products sold in more than 100 countries with professional service centers.
📦 Packaging & Shipping
❓ Frequently Asked Questions
What can we do for you?
We are committed to providing you with advanced equipment, technical solutions, and comprehensive service support to help you improve production efficiency, reduce costs, and optimize product quality.
Are you a trade company or manufacturer?
We are a manufacturer with independent research and development capabilities and high-end manufacturing facilities.
What is the typical delivery date?
The delivery time is approximately 35 days after the receipt of payment, depending on specific configuration requirements.
What materials are suitable for this machine?

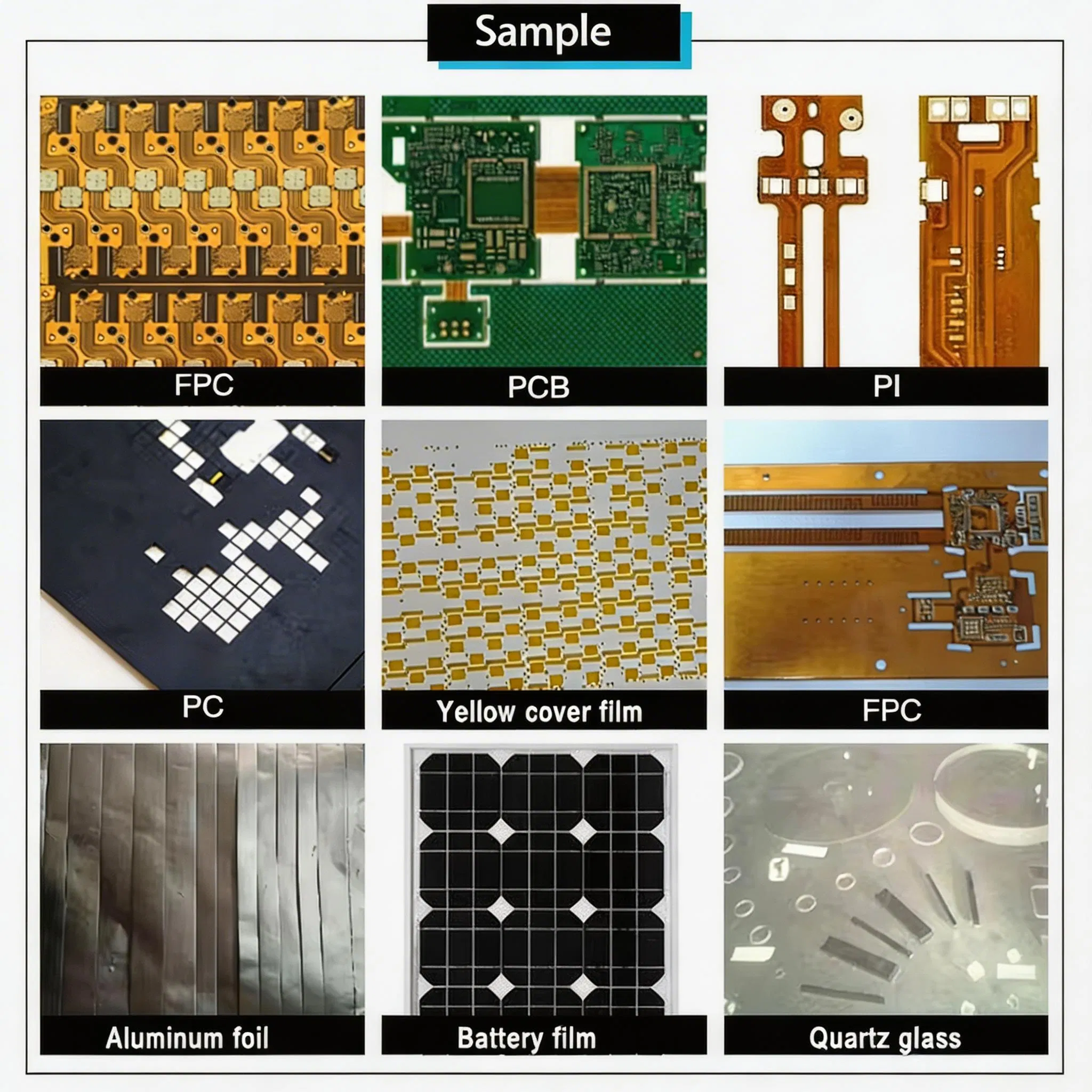

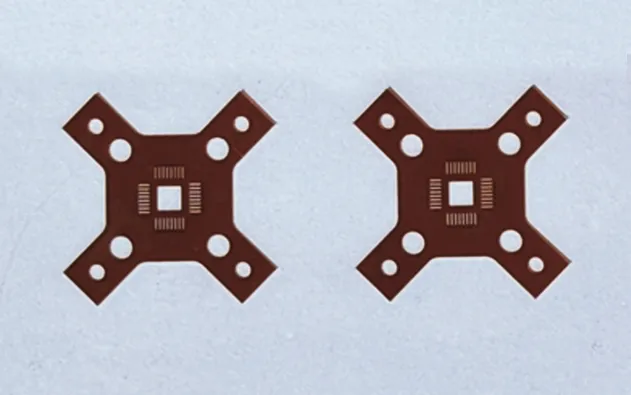

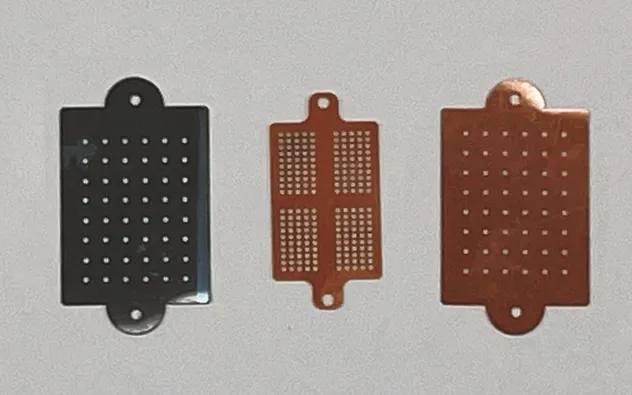

It is ideal for precision laser cutting, drilling, and etching on various foil and non-metal materials, such as flexible OLED, LCP, PI film, FPC, nanogold, polarizer, and FPC cover films.
What is the after-sales service policy?
We offer a one-year warranty and lifetime service. During the warranty, we provide free repairs and replacement parts for non-human damage. Remote video guidance and professional telephone consultations are also available.
Can we apply to be an agent?
We warmly welcome global agents. We provide full support including technical solutions, comprehensive after-sales service, and favorable discount policies to help expand local markets.
