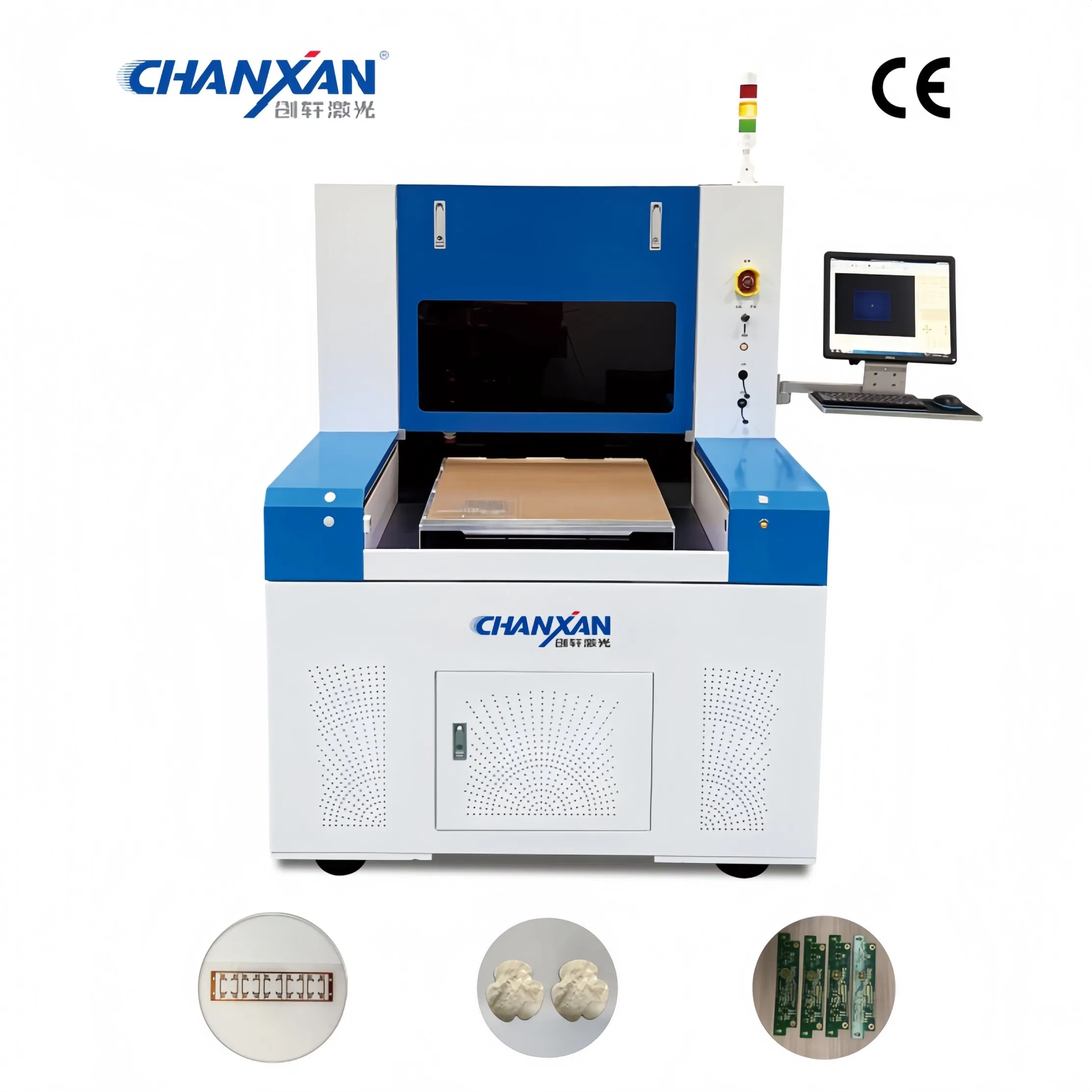

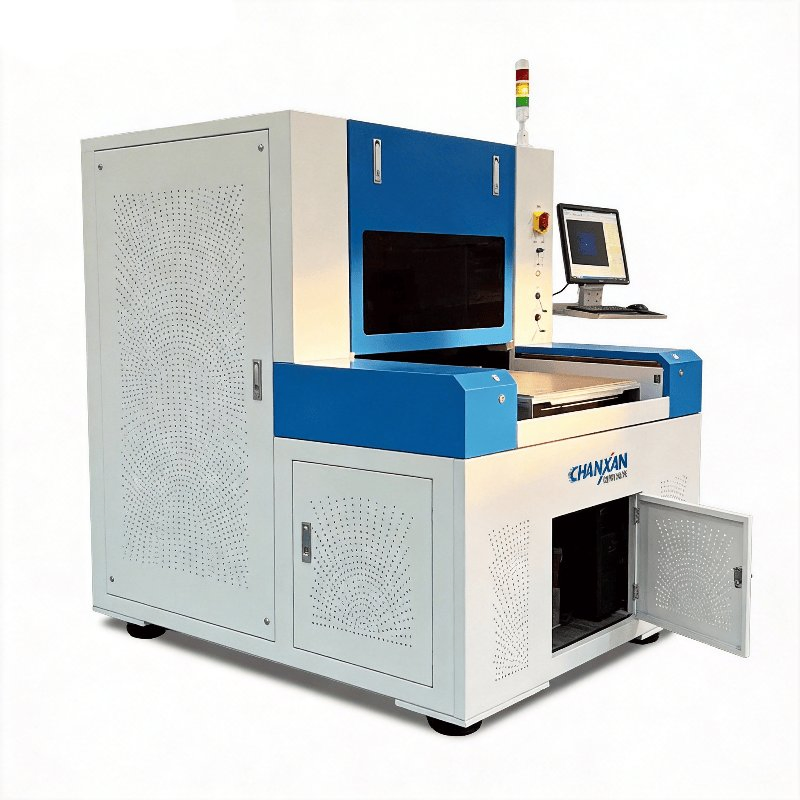

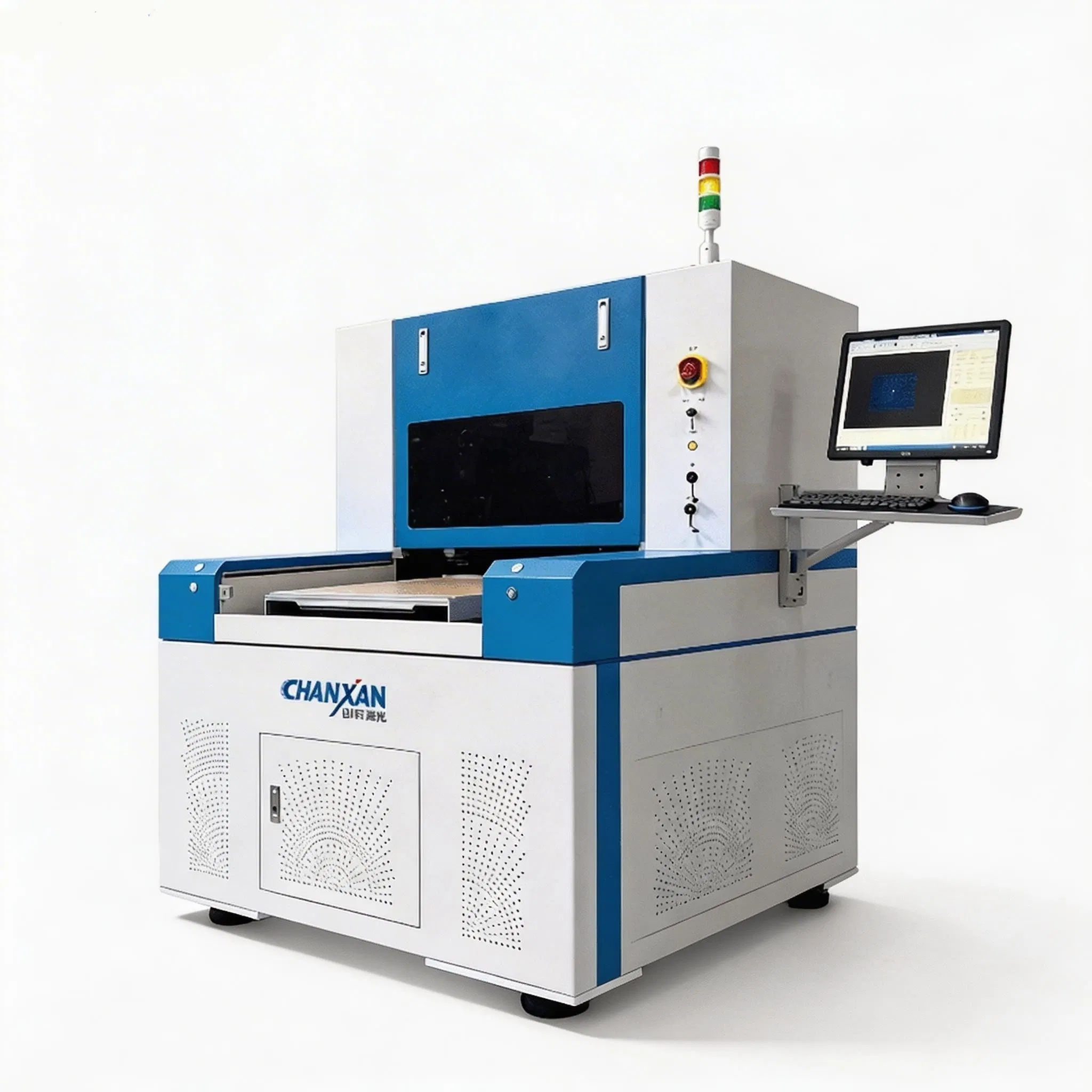

Ultra-Precise Picosecond China Laser Cutting Machine for Flexible Electronics
Product Description
📊
Basic Specifications
Model NO.
CS-0605-V-A
Application
Aerospace, Automotive, Semiconductors, 3C, Biomedical
Cooling System
Water Cooling
Technical Class
Pulse Laser
Applicable Material
Nonmetal
Laser Type
Ultrafast Picosecond Laser
Laser Power
10W / 30W / 35W
Working Area
500 * 610mm
Positioning Accuracy
±1um
Processing Speed
≤3000mm/S
Certification
CE
Power Supply
AC 380V±10%, 50~60Hz

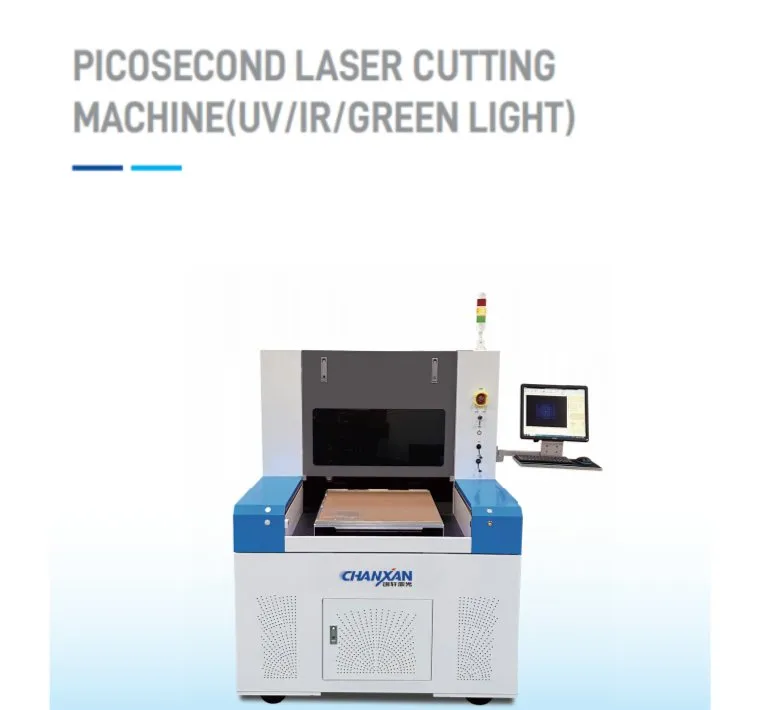

Picosecond Laser Cutting Machine (UV/IR/Green Light)
Comprehensive laser solutions for precision processing in the 3C industry, including FPC precision cutting, ultra-thin PBC cutting, high-resolution marking, plating removal, and micro-hole machining. Groundbreaking accuracy of ±5 micrometer ensures zero damage to components.
🚀

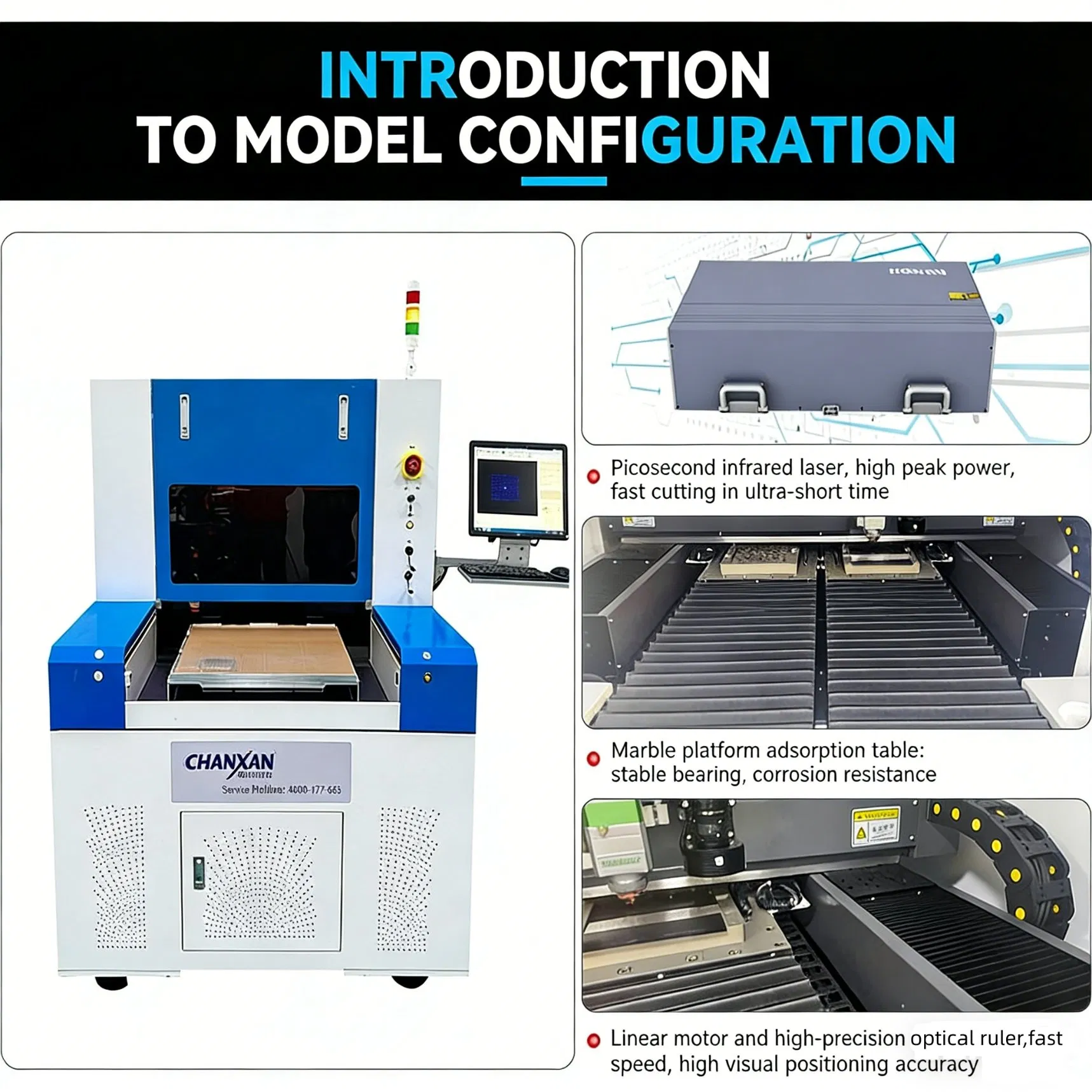

Equipment Advantages
1. Cold Processing: Ultra-short pulse lasers achieve minimal Heat Affected Zone (HAZ), eliminating the need for following auxiliary processing.
2. Stability: Equipped with a linear motor driver system and marble platform to ensure precision during high-speed operation.
3. Accuracy: High-resolution CCD automatic alignment guarantees accurate positioning during cutting.
4. Durability: Solid protection of the entire optical path ensures long-term stable function.
⚙️
Technical Parameters
| Laser Power | 10W/30W/35W | Dimensions | 2200*1500*1750mm |
| Working Area | 500*610mm | Certification | CE |
| Positioning Accuracy | ±1um | Machinery Test Report | Provided |
| Processing Speed | ≤3000mm/s | Video Inspection | Provided |
| Focus Spot | ≤20um | Core Components | Picosecond/Nanosecond/UV |
🏭

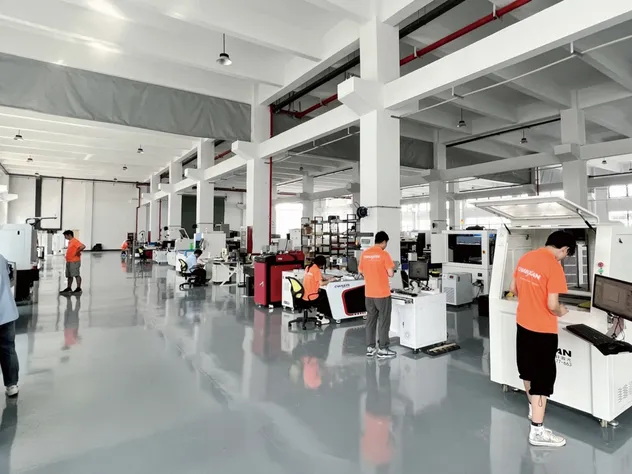

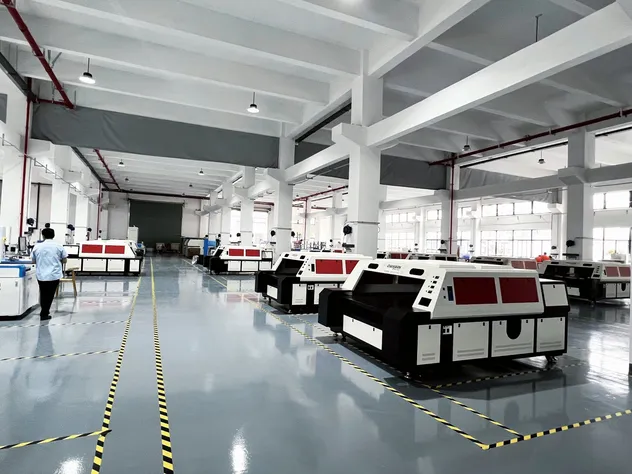

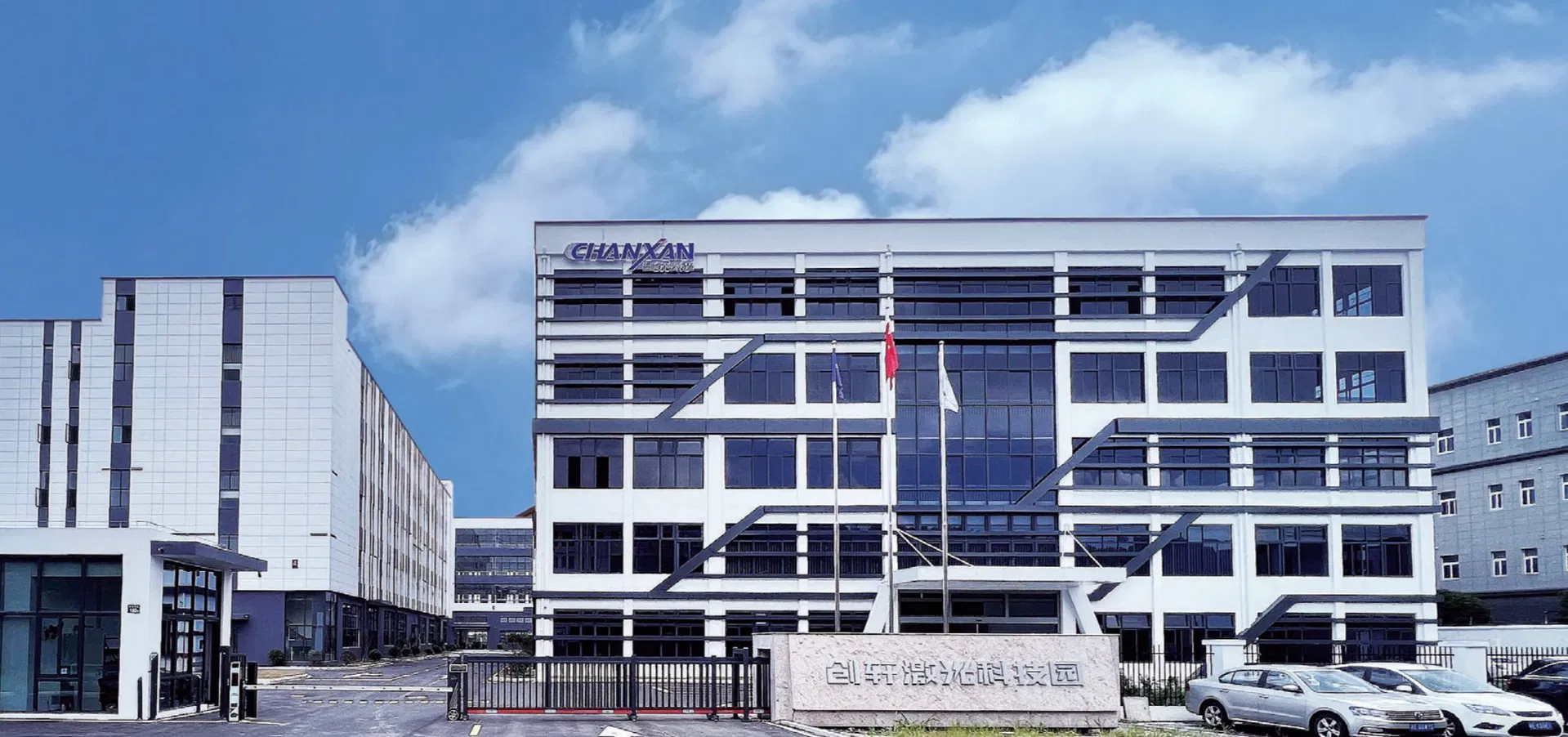

Manufacturing Excellence
Our production facilities span 80,000 square meters with multiple R&D and sales bases. As a national high-tech enterprise, we hold 150 national patents and adhere strictly to ISO9001:2015 international quality management standards.
Why Choose Us?
Digitalized after-sales service, 24-hour response commitment, and a mission to ensure every customer utilizes laser technology to its full potential.
Global Reach
Products are successfully deployed in over 100 countries, providing high-quality equipment to industrial customers worldwide.
📦
Packaging & Logistics
💡
Frequently Asked Questions
What materials can be processed by this picosecond laser?

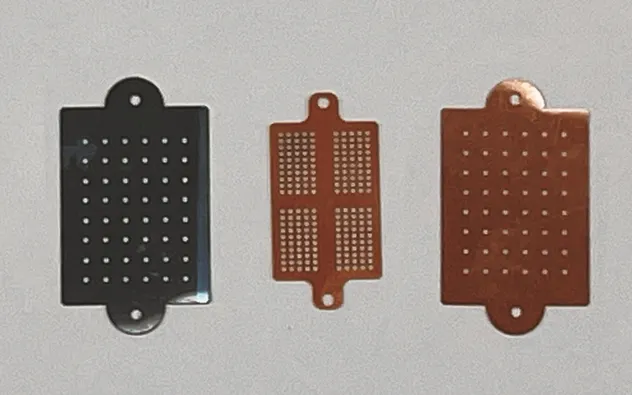

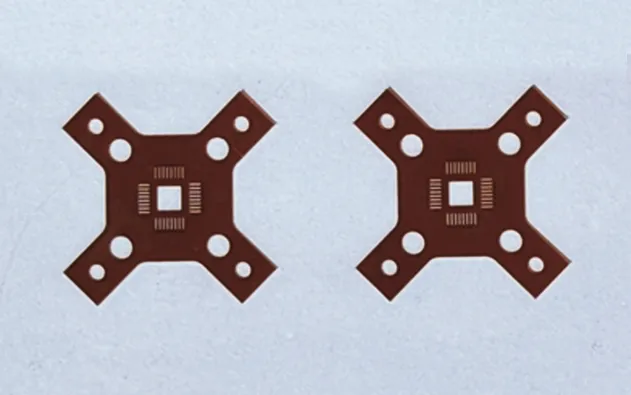

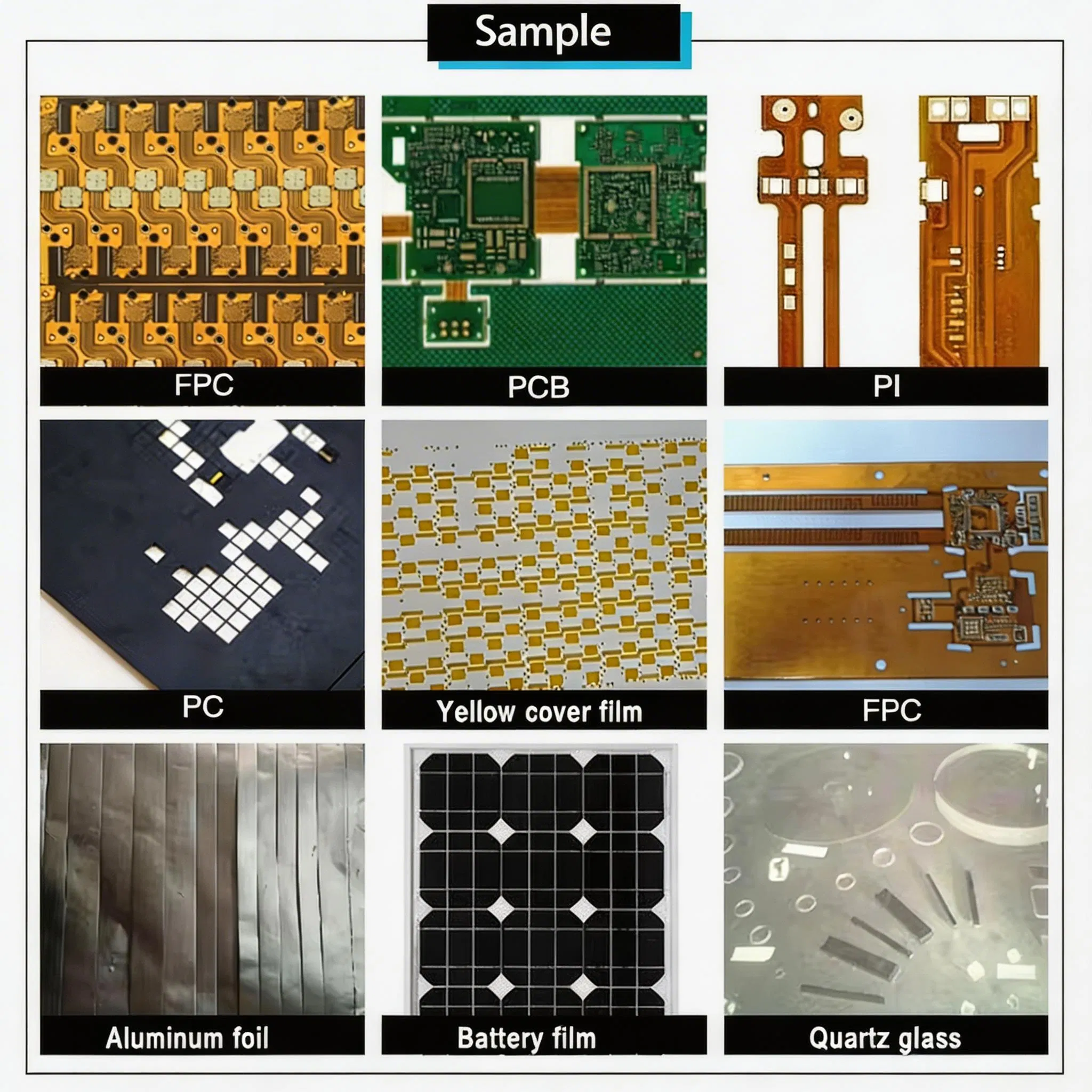

The machine is ideal for non-metal materials including PI film, cover film, FPC, PCB, flexible OLED, LCP, and various foils used in electronic industries.
What is the positioning accuracy of the equipment?
The machine achieves a positioning accuracy of ±1μm and a repeatability of 1μm, making it suitable for high-precision micro-cutting and drilling.
How long is the delivery time?
The standard delivery date is approximately 35 days after the receipt of payment.
What kind of after-sales service do you provide?
We offer a one-year warranty on core components and lifetime technical support, including remote video guidance and telephone consultation.
Is this machine capable of "cold processing"?
Yes, the ultra-short pulse picosecond laser achieves "cold" processing with a minimal Heat Affected Zone (HAZ), which prevents thermal damage to sensitive materials.
Does the machine support large-area processing?
Yes, an optional extra-large field telecentric lens supports a maximum single processing area of 200×200mm without the need for stitching.
